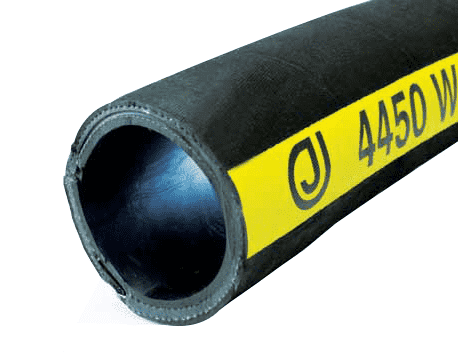

4450-0600-020 by Jason Industrial | 4450 Series | Rubber Water Suction Hose | 150 PSI | 6" ID | 6.54" OD | Black | EPDM | 20ft

4450-0600-020 by Jason Industrial | 4450 Series | Rubber Water Suction Hose | 150 PSI | 6" ID | 6.54" OD | Black | EPDM | 20ft

Save $4.47 Save $4.47
$439.67
$439.67 - $439.67
$439.67
$435.20
$435.20 - $435.20
$435.20

Jason Industrial Inc. Hose - Water Hose - 4450 Rubber Water Suction Hose

Package Quantity: 20 FT

Specifications for Variant SKU: 4450-0600-020 Jason | 20 |
Series: 4450 Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.54in
Tubing Construction: EPDM
Cover Construction: EPDM
Special Properties: Outer Helix Protection





SPECIFICATIONS

Application: For suction, discharge or gravity flow of water in construction, mining, oil exploration, agriculture and equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: EPDM Blend, Smooth, Black
Reinforcement: Two-ply or Four-ply Synthetic Fabric with a Double Wire Helix Cover: EPDM Blend, Fabric Impression
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4450 WATER SUCTION WP PSI (BAR). Yellow mylar longitudinal stripe
Other Features:
  • Resistant to water-based ag fertilizers
  • Resistant to salt water
  • Cover is abrasion and weather resistant
  • Flexible and economical
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4450-0100-100 1" 25.40mm 1.42" 36.00mm 2 150 PSI 10.35 BAR 28.0 inHg 0.50 lb./ft. 0.75 KG/m 3.75" 95.00mm 100ft
4450-0125-100 1-1/4" 31.75mm 1.70" 43.18mm 2 150 PSI 10.35 BAR 28.0 inHg 0.75 lb./ft. 1.12 KG/m 6.00" 152.40mm 100ft
4450-0150-100 1-1/2" 38.10mm 1.96" 49.78mm 2 150 PSI 10.35 BAR 28.0 inHg 0.80 lb./ft. 1.19 KG/m 6.50" 165.10mm 100ft
4450-0200-100 2" 50.80mm 2.49" 63.25mm 2 150 PSI 10.35 BAR 28.0 inHg 1.11 lb./ft. 1.65 KG/m 8.00" 203.20mm 100ft
4450-0200-200 2" 50.80mm 2.49" 63.25mm 2 150 PSI 10.35 BAR 28.0 inHg 1.11 lb./ft. 1.65 KG/m 8.00" 203.20mm 200ft
4450-0250-100 2-1/2" 63.50mm 2.99" 75.95mm 2 150 PSI 10.35 BAR 28.0 inHg 1.75 lb./ft. 2.60 KG/m 10.00" 254.00mm 100ft
4450-0300-100 3" 76.20mm 3.50" 88.90mm 2 150 PSI 10.35 BAR 28.0 inHg 2.24 lb./ft. 3.33 KG/m 12.00" 304.80mm 100ft
4450-0300-200 3" 76.20mm 3.50" 88.90mm 2 150 PSI 10.35 BAR 28.0 inHg 2.24 lb./ft. 3.33 KG/m 12.00" 304.80mm 200ft
4450-0400-100 4" 101.60mm 4.53" 115.06mm 2 150 PSI 10.35 BAR 28.0 inHg 2.79 lb./ft. 4.15 KG/m 18.00" 457.20mm 100ft
4450-0400-200 4" 101.60mm 4.53" 115.06mm 2 150 PSI 10.35 BAR 28.0 inHg 2.79 lb./ft. 4.15 KG/m 18.00" 457.20mm 200ft
4450-0500-100 5" 127.00mm 5.68" 144.27mm 2 150 PSI 10.35 BAR 28.0 inHg 3.25 lb./ft. 4.84 KG/m 26.00" 660.40mm 100ft
4450-0600-020 6" 152.40mm 6.54" 166.12mm 2 150 PSI 10.35 BAR 28.0 inHg 5.75 lb./ft. 8.56 KG/m 31.00" 787.40mm 20ft
4450-0600-050 6" 152.40mm 6.54" 166.12mm 2 150 PSI 10.35 BAR 28.0 inHg 5.75 lb./ft. 8.56 KG/m 31.00" 787.40mm 50ft
4450-0600-100 6" 152.40mm 6.54" 166.12mm 2 150 PSI 10.35 BAR 28.0 inHg 5.75 lb./ft. 8.56 KG/m 31.00" 787.40mm 100ft
4450-0800-020 8" 203.20mm 8.79" 223.27mm 4 100 PSI 6.89 BAR 28.0 inHg 6.59 lb./ft. 9.81 KG/m 42.00" 1066.80mm 20ft
4450-1000-020 10" 254.00mm 10.91" 277.11mm 4 75 PSI 5.17 BAR 28.0 inHg 10.25 lb./ft. 15.25 KG/m 50.00" 1270.00mm 20ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
