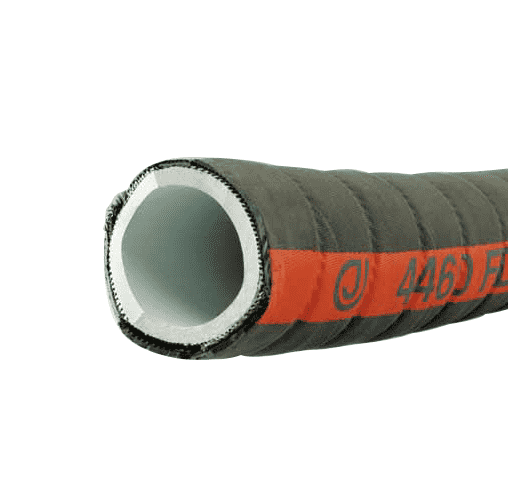

4460-0688-020 by Jason Industrial | 4460 Series | FDA Bulk Food Suction Hose | 150 PSI | 6-7/8" ID | 7.80" OD | Gray | 20ft

Save $87.38

$873.78

$873.78 - $873.78

$873.78

$786.40

$786.40 - $786.40

$786.40

Jason Industrial Inc. Hose - Food Hose - 4460 FDA Bulk Food Suction Hose - Gray

Package Quantity: 20 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4460-0688-020 Jason \| 20 \|
Series:	4460 Series
Hose Color(s):	Gray
Internal Diameter:	6.875in
Outer Diameter:	7.80in
Tubing Construction:	Natural Rubber
Cover Construction:	Natural Rubber
Applicable Specs & Approvals:	Applicable FDA Requirements

SPECIFICATIONS

Other Features:
Application:	For suction, pneumatic or gravity transfer of flour, sugar, syrup or edible grains.	SAE Rating:	N/A
Other Ratings:	FDA Grade Tube	Tube:	White Natural Rubber (NR), 3/16" Thick, FDA Grade
Reinforcement:	Two-ply Reinforcement, Steel Wire Helix	Cover:	Natural Rubber, Gray, Flat Corrugations
Temperature Range:	-40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4460 FDA ID 3/16" Tube BULK FOOD SUCTION WP (PSI) (BAR). Orange mylar longitudinal stripe
Corrugations make the hose extremely flexible FDA Grade tube, natural rubber Natural rubber cover is weather and abrasion resistant All sizes are full vacuum

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4460-0100-100	1"	25.40mm	1.49"	37.85mm	2	150 PSI	10.35 BAR	29.0 inHg	0.69 lb./ft.	1.03 KG/m	4.50"	114.30mm	100ft
4460-0150-100	1-1/2"	38.10mm	2.05"	52.07mm	2	150 PSI	10.35 BAR	29.0 inHg	0.98 lb./ft.	1.46 KG/m	5.00"	127.00mm	100ft
4460-0200-100	2"	50.80mm	2.66"	67.56mm	2	150 PSI	10.35 BAR	29.0 inHg	1.37 lb./ft.	2.04 KG/m	6.00"	152.40mm	100ft
4460-0200-200	2"	50.80mm	2.66"	67.56mm	2	150 PSI	10.35 BAR	29.0 inHg	1.37 lb./ft.	2.04 KG/m	6.00"	152.40mm	200ft
4460-0250-100	2-1/2"	63.50mm	3.07"	77.98mm	2	150 PSI	10.35 BAR	29.0 inHg	1.67 lb./ft.	2.49 KG/m	8.00"	203.20mm	100ft
4460-0300-100	3"	76.20mm	3.62"	91.95mm	2	150 PSI	10.35 BAR	29.0 inHg	2.14 lb./ft.	3.18 KG/m	10.00"	254.00mm	100ft
4460-0350-100	3-1/2"	88.90mm	4.21"	106.93mm	2	150 PSI	10.35 BAR	29.0 inHg	2.60 lb./ft.	3.87 KG/m	12.00"	304.80mm	100ft
4460-0400-100	4"	101.60mm	4.72"	119.89mm	2	150 PSI	10.35 BAR	29.0 inHg	3.14 lb./ft.	4.67 KG/m	20.00"	508.00mm	100ft
4460-0450-060	4-1/2"	114.30mm	5.27"	133.86mm	2	150 PSI	10.35 BAR	29.0 inHg	3.94 lb./ft.	5.86 KG/m	22.00"	558.80mm	60ft
4460-0500-100	5"	127.00mm	5.71"	145.03mm	2	150 PSI	10.35 BAR	29.0 inHg	4.67 lb./ft.	6.95 KG/m	24.00"	609.60mm	100ft
4460-0600-020	6"	152.40mm	6.77"	171.96mm	2	150 PSI	10.35 BAR	29.0 inHg	5.98 lb./ft.	8.90 KG/m	26.00"	660.40mm	20ft
4460-0600-100	6"	152.40mm	6.77"	171.96mm	2	150 PSI	10.35 BAR	29.0 inHg	5.98 lb./ft.	8.90 KG/m	26.00"	660.40mm	100ft
4460-0662-020	6-5/8"	168.28mm	7.52"	191.01mm	2	150 PSI	10.35 BAR	29.0 inHg	7.31 lb./ft.	10.88 KG/m	29.00"	736.60mm	20ft
4460-0688-020	6-7/8"	174.63mm	7.80"	198.13mm	2	150 PSI	10.35 BAR	29.0 inHg	7.81 lb./ft.	11.58 KG/m	30.00"	762.60mm	20ft
4460-0800-020	8"	203.20mm	8.78"	223.01mm	2	150 PSI	10.35 BAR	29.0 inHg	9.36 lb./ft.	13.93 KG/m	32.00"	812.80mm	20ft
4460-0862-020	8-5/8"	219.08mm	9.33"	236.98mm	2	125 PSI	8.62 BAR	29.0 inHg	9.64 lb./ft.	14.35 KG/m	36.00"	914.40mm	20ft
4460-1000-020	10"	254.00mm	10.83"	275.08mm	2	125 PSI	8.62 BAR	29.0 inHg	11.57 lb./ft.	17.22 KG/m	44.00"	1117.60mm	20ft
4460-1200-020	12"	304.80mm	12.83"	325.88mm	2	100 PSI	6.89 BAR	29.0 inHg	15.27 lb./ft.	22.72 KG/m	60.00"	1524.00mm	20ft
4460-1400-020	14"	355.60mm	14.76"	374.90mm	2	100 PSI	6.89 BAR	29.0 inHg	18.41 lb./ft.	27.40 KG/m	72.00"	1828.80mm	20ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
