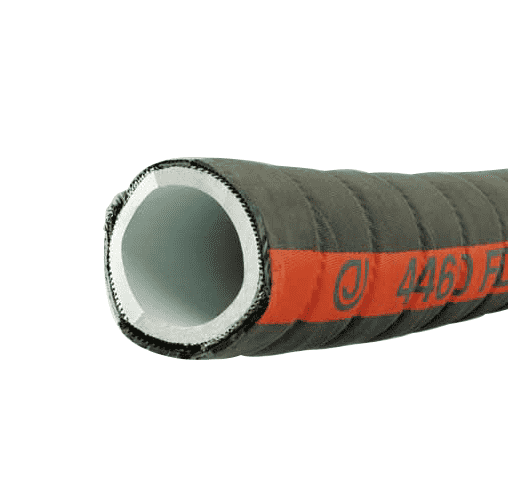

4460-1000-020 by Jason Industrial | 4460 Series | FDA Bulk Food Suction Hose | 125 PSI | 10" ID | 10.83" OD | Gray | 20ft

4460-1000-020 by Jason Industrial | 4460 Series | FDA Bulk Food Suction Hose | 125 PSI | 10" ID | 10.83" OD | Gray | 20ft

Save $689.12 Save $689.12
$2,411.93
$2,411.93 - $2,411.93
$2,411.93
$1,722.81
$1,722.81 - $1,722.81
$1,722.81

Jason Industrial Inc. Hose - Food Hose - 4460 FDA Bulk Food Suction Hose - Gray

Package Quantity: 20 FT

Specifications for Variant SKU: 4460-1000-020 Jason | 20 |
Series: 4460 Series
Hose Color(s): Gray
Internal Diameter: 10in
Outer Diameter: 10.83in
Tubing Construction: Natural Rubber
Cover Construction: Natural Rubber
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: For suction, pneumatic or gravity transfer of flour, sugar, syrup or edible grains. SAE Rating: N/A
Other Ratings: FDA Grade Tube Tube: White Natural Rubber (NR), 3/16" Thick, FDA Grade
Reinforcement: Two-ply Reinforcement, Steel Wire Helix Cover: Natural Rubber, Gray, Flat Corrugations
Temperature Range: -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4460 FDA ID 3/16" Tube BULK FOOD SUCTION WP (PSI) (BAR). Orange mylar longitudinal stripe
Other Features:
  • Corrugations make the hose extremely flexible
  • FDA Grade tube, natural rubber
  • Natural rubber cover is weather and abrasion resistant
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4460-0100-100 1" 25.40mm 1.49" 37.85mm 2 150 PSI 10.35 BAR 29.0 inHg 0.69 lb./ft. 1.03 KG/m 4.50" 114.30mm 100ft
4460-0150-100 1-1/2" 38.10mm 2.05" 52.07mm 2 150 PSI 10.35 BAR 29.0 inHg 0.98 lb./ft. 1.46 KG/m 5.00" 127.00mm 100ft
4460-0200-100 2" 50.80mm 2.66" 67.56mm 2 150 PSI 10.35 BAR 29.0 inHg 1.37 lb./ft. 2.04 KG/m 6.00" 152.40mm 100ft
4460-0200-200 2" 50.80mm 2.66" 67.56mm 2 150 PSI 10.35 BAR 29.0 inHg 1.37 lb./ft. 2.04 KG/m 6.00" 152.40mm 200ft
4460-0250-100 2-1/2" 63.50mm 3.07" 77.98mm 2 150 PSI 10.35 BAR 29.0 inHg 1.67 lb./ft. 2.49 KG/m 8.00" 203.20mm 100ft
4460-0300-100 3" 76.20mm 3.62" 91.95mm 2 150 PSI 10.35 BAR 29.0 inHg 2.14 lb./ft. 3.18 KG/m 10.00" 254.00mm 100ft
4460-0350-100 3-1/2" 88.90mm 4.21" 106.93mm 2 150 PSI 10.35 BAR 29.0 inHg 2.60 lb./ft. 3.87 KG/m 12.00" 304.80mm 100ft
4460-0400-100 4" 101.60mm 4.72" 119.89mm 2 150 PSI 10.35 BAR 29.0 inHg 3.14 lb./ft. 4.67 KG/m 20.00" 508.00mm 100ft
4460-0450-060 4-1/2" 114.30mm 5.27" 133.86mm 2 150 PSI 10.35 BAR 29.0 inHg 3.94 lb./ft. 5.86 KG/m 22.00" 558.80mm 60ft
4460-0500-100 5" 127.00mm 5.71" 145.03mm 2 150 PSI 10.35 BAR 29.0 inHg 4.67 lb./ft. 6.95 KG/m 24.00" 609.60mm 100ft
4460-0600-020 6" 152.40mm 6.77" 171.96mm 2 150 PSI 10.35 BAR 29.0 inHg 5.98 lb./ft. 8.90 KG/m 26.00" 660.40mm 20ft
4460-0600-100 6" 152.40mm 6.77" 171.96mm 2 150 PSI 10.35 BAR 29.0 inHg 5.98 lb./ft. 8.90 KG/m 26.00" 660.40mm 100ft
4460-0662-020 6-5/8" 168.28mm 7.52" 191.01mm 2 150 PSI 10.35 BAR 29.0 inHg 7.31 lb./ft. 10.88 KG/m 29.00" 736.60mm 20ft
4460-0688-020 6-7/8" 174.63mm 7.80" 198.13mm 2 150 PSI 10.35 BAR 29.0 inHg 7.81 lb./ft. 11.58 KG/m 30.00" 762.60mm 20ft
4460-0800-020 8" 203.20mm 8.78" 223.01mm 2 150 PSI 10.35 BAR 29.0 inHg 9.36 lb./ft. 13.93 KG/m 32.00" 812.80mm 20ft
4460-0862-020 8-5/8" 219.08mm 9.33" 236.98mm 2 125 PSI 8.62 BAR 29.0 inHg 9.64 lb./ft. 14.35 KG/m 36.00" 914.40mm 20ft
4460-1000-020 10" 254.00mm 10.83" 275.08mm 2 125 PSI 8.62 BAR 29.0 inHg 11.57 lb./ft. 17.22 KG/m 44.00" 1117.60mm 20ft
4460-1200-020 12" 304.80mm 12.83" 325.88mm 2 100 PSI 6.89 BAR 29.0 inHg 15.27 lb./ft. 22.72 KG/m 60.00" 1524.00mm 20ft
4460-1400-020 14" 355.60mm 14.76" 374.90mm 2 100 PSI 6.89 BAR 29.0 inHg 18.41 lb./ft. 27.40 KG/m 72.00" 1828.80mm 20ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
