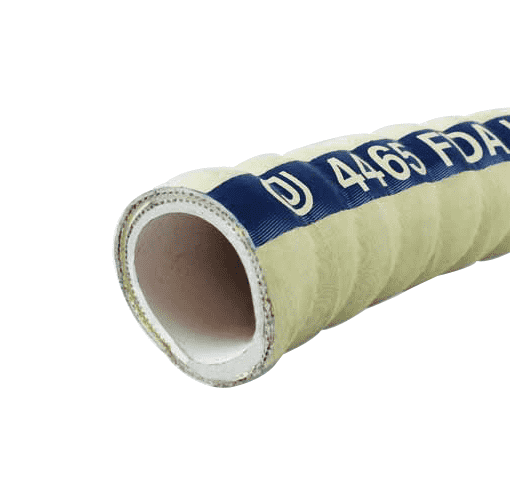

4465-0200-100 by Jason Industrial | 4465 Series | FDA Liquid Food Suction Hose | 150 PSI | 2" ID | 2.56" OD | White | 100ft

Save $626.37

$2,192.29

$2,192.29 - $2,192.29

$2,192.29

$1,565.92

$1,565.92 - $1,565.92

$1,565.92

Jason Industrial Inc. Hose - Food Hose - 4465 FDA Liquid Food Suction Hose - White

Package Quantity: 100 FT

Specifications for Variant SKU: 4465-0200-100 Jason \| 100 \|
Series:	4465 Series
Hose Color(s):	White/Off-White
Internal Diameter:	2in
Outer Diameter:	2.56in
Tubing Construction:	Natural Rubber
Cover Construction:	Nitrile
Applicable Specs & Approvals:	Applicable FDA Requirements

SPECIFICATIONS

Other Features:
Application:	For suction and discharge of liquid food products, including oily edibles and beer.	SAE Rating:	N/A
Other Ratings:	FDA Grade Tube	Tube:	White Nitrile Rubber, FDA Grade
Reinforcement:	Two-ply Reinforcement, Steel Wire Helix	Cover:	Nitrile, Corrugated, White
Temperature Range:	-25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4465 FDA LIQUID FOOD SUCTION WP 150 PSI 10.35 BAR. Blue mylar longitudinal stripe.
Corrugations make the hose extremely flexible FDA Grade tube, nitrile rubber Nitrile rubber cover is weather and abrasion resistant All sizes are full vacuum Capable of handling a wide variety of food products

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4465-0075-100	3/4"	19.05mm	1.10"	28.00mm	2	150 PSI	10.35 BAR	29.0 inHg	0.34 lb./ft.	0.51 KG/m	2.40"	60.00mm	100ft
4465-0100-100	1"	25.40mm	1.38"	35.00mm	2	150 PSI	10.35 BAR	29.0 inHg	0.45 lb./ft.	0.67 KG/m	3.10"	80.00mm	100ft
4465-0150-100	1-1/2"	38.10mm	2.05"	52.07mm	2	150 PSI	10.35 BAR	29.0 inHg	1.06 lb./ft.	1.58 KG/m	4.00"	101.60mm	100ft
4465-0200-100	2"	50.80mm	2.56"	65.02mm	2	150 PSI	10.35 BAR	29.0 inHg	1.35 lb./ft.	2.01 KG/m	5.00"	127.00mm	100ft
4465-0300-100	3"	76.20mm	3.56"	90.42mm	2	150 PSI	10.35 BAR	29.0 inHg	2.08 lb./ft.	3.10 KG/m	6.00"	152.40mm	100ft
4465-0400-100	4"	101.60mm	4.69"	119.13mm	2	150 PSI	10.35 BAR	29.0 inHg	3.21 lb./ft.	4.79 KG/m	8.00"	203.20mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
