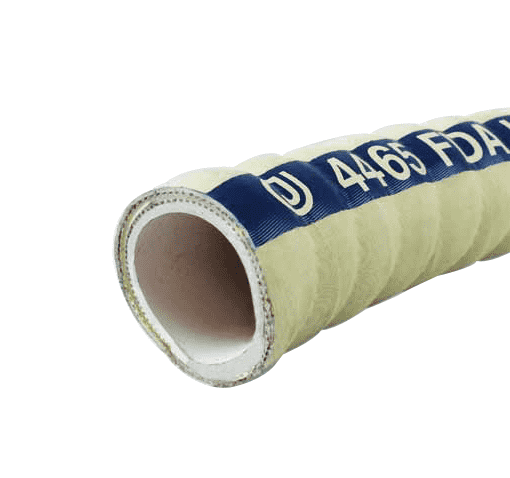

4465-0300-100 by Jason Industrial | 4465 Series | FDA Liquid Food Suction Hose | 150 PSI | 3" ID | 3.56" OD | White | 100ft

4465-0300-100 by Jason Industrial | 4465 Series | FDA Liquid Food Suction Hose | 150 PSI | 3" ID | 3.56" OD | White | 100ft

Save $798.81 Save $798.81
$2,795.84
$2,795.84 - $2,795.84
$2,795.84
$1,997.03
$1,997.03 - $1,997.03
$1,997.03

Jason Industrial Inc. Hose - Food Hose - 4465 FDA Liquid Food Suction Hose - White

Package Quantity: 100 FT

Specifications for Variant SKU: 4465-0300-100 Jason | 100 |
Series: 4465 Series
Hose Color(s): White/Off-White
Internal Diameter: 3in
Outer Diameter: 3.56in
Tubing Construction: Natural Rubber
Cover Construction: Nitrile
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: For suction and discharge of liquid food products, including oily edibles and beer. SAE Rating: N/A
Other Ratings: FDA Grade Tube Tube: White Nitrile Rubber, FDA Grade
Reinforcement: Two-ply Reinforcement, Steel Wire Helix Cover: Nitrile, Corrugated, White
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4465 FDA LIQUID FOOD SUCTION WP 150 PSI 10.35 BAR. Blue mylar longitudinal stripe.
Other Features:
  • Corrugations make the hose extremely flexible
  • FDA Grade tube, nitrile rubber
  • Nitrile rubber cover is weather and abrasion resistant
  • All sizes are full vacuum
  • Capable of handling a wide variety of food products
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4465-0075-100 3/4" 19.05mm 1.10" 28.00mm 2 150 PSI 10.35 BAR 29.0 inHg 0.34 lb./ft. 0.51 KG/m 2.40" 60.00mm 100ft
4465-0100-100 1" 25.40mm 1.38" 35.00mm 2 150 PSI 10.35 BAR 29.0 inHg 0.45 lb./ft. 0.67 KG/m 3.10" 80.00mm 100ft
4465-0150-100 1-1/2" 38.10mm 2.05" 52.07mm 2 150 PSI 10.35 BAR 29.0 inHg 1.06 lb./ft. 1.58 KG/m 4.00" 101.60mm 100ft
4465-0200-100 2" 50.80mm 2.56" 65.02mm 2 150 PSI 10.35 BAR 29.0 inHg 1.35 lb./ft. 2.01 KG/m 5.00" 127.00mm 100ft
4465-0300-100 3" 76.20mm 3.56" 90.42mm 2 150 PSI 10.35 BAR 29.0 inHg 2.08 lb./ft. 3.10 KG/m 6.00" 152.40mm 100ft
4465-0400-100 4" 101.60mm 4.69" 119.13mm 2 150 PSI 10.35 BAR 29.0 inHg 3.21 lb./ft. 4.79 KG/m 8.00" 203.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
