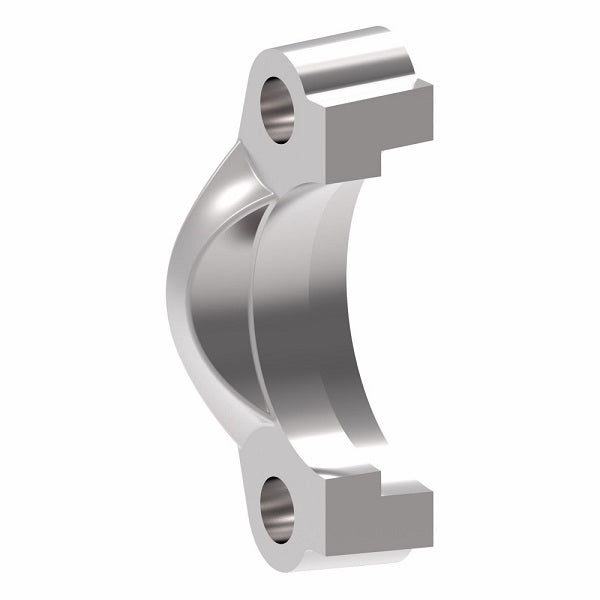

449-74446-40 Aeroquip by Danfoss | Code 61 Split Flange Half (1 Flange Half) | for 2-1/2" Flange Size | Steel

449-74446-40 Aeroquip by Danfoss | Code 61 Split Flange Half (1 Flange Half) | for 2-1/2" Flange Size | Steel

Name: 449-74446-40 Aeroquip by Danfoss | Code 61 Split Flange Half (1 Flange Half) | for 2-1/2" Flange Size | Steel
Brand: Danfoss/Eaton
SKU: 449-74446-40 Danfoss
Price: 45.28 USD
Availability: InStock

$45.28 - $45.28

$45.28

$45.28 - $45.28

$45.28

Aeroquip® by Danfoss
Flange Halves for SAE Code 61 Split Flange Kit (SAE J518)

Important: 2 flange halves are required for a complete assembly.
Flange halves are not sold as a pair. If you require 2 halves, set the quantity below, to 2.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 449-74446-40 Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	2-1/2in Code 61 Flange
Material(s):	Steel

Technical Info:
Crimp Fitting Socket Data.PDF
Specifications:
Temperature range: -40°F to +250°F (-40°C to + 121°C)


Flange Halves (2 required) Part Number	Nominal Flange Size	A	B	C	Bolt torque lb.-in
449-74446-8	1/2"	1.50"	0.68"	0.34"	175-225
449-74446-12	3/4"	1.88"	0.88"	0.41"	250-350
449-74446-16	1"	2.06"	1.04"	0.41"	325-425
449-74446-20	1-1/4"	2.31"	1.18"	0.48"	425-550
449-74446-24	1-1/2"	2.75"	1.40"	0.53"	550-700
449-74446-32	2"	3.06"	1.68"	0.53"	650-800
449-74446-40	2-1/2"	3.50"	2.00"	0.53"	950-1100
449-74446-48	3"	4.19"	2.44"	0.66"	1650-1800
