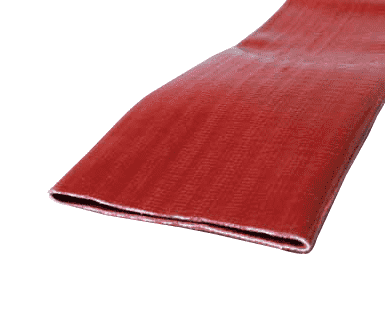

4504-4000 by Jason Industrial | 4504 Series | Water Discharge Hose | 100 PSI | 4" ID | 0.081" Wall Thickness | Wine Red | PVC | 300ft

Save $345.02

$1,207.56

$1,207.56 - $1,207.56

$1,207.56

$862.54

$862.54 - $862.54

$862.54

Jason Industrial Inc. Hose - Water Hose - 4504 Wine Red PVC Water Discharge Hose & Assemblies - Medium Duty

Package Quantity: 300 FT

Specifications for Variant SKU: 4504-4000 Jason \| 300 \|
Series:	4504 Series
Hose Color(s):	Red
Internal Diameter:	4in
Tubing Construction:	PVC
Cover Construction:	PVC

SPECIFICATIONS

Other Features:
Application:	For general purpose water discharge in construction, agriculture and drip irrigation.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Wine Red, PVC
Reinforcement:	Knitted Polyester Yarn	Cover:	Wine Red, PVC
Temperature Range:	-14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo WP XX (PSI) ID
Medium duty hose Rolls flat for convenient storage Homogeneous construction eliminates tube and cover separation Maximum bonding is due to the tube and cover being extruded simultaneously

Part Number	I.D.		Wall Thickness		Reinforcement	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	ft
Uncoupled - Bulk
4504-1500	1-1/2"	38.10mm	0.076"	1.93mm	Knitted	115 PSI	7.93 BAR	N/A	0.21 lb./ft.	0.31 KG/m	300ft
4504-2000	2"	50.80mm	0.076"	1.93mm	Knitted	115 PSI	7.93 BAR	N/A	0.25 lb./ft.	0.37 KG/m	300ft
4504-2500	2-1/2"	63.50mm	0.079"	2.01mm	Knitted	115 PSI	7.93 BAR	N/A	0.29 lb./ft.	0.43 KG/m	300ft
4504-3000	3"	76.20mm	0.079"	2.01mm	Knitted	100 PSI	6.89 BAR	N/A	0.39 lb./ft.	0.58 KG/m	300ft
4504-4000	4"	101.60mm	0.081"	2.06mm	Knitted	100 PSI	6.86 BAR	N/A	0.60 lb./ft.	0.89 KG/m	300ft
4504-6000	6"	152.40mm	0.112"	2.84mm	Knitted	75 PSI	5.17 BAR	N/A	1.15 lb./ft.	1.71 KG/m	300ft
4504-8000	8"	203.20mm	0.124"	3.15mm	Knitted	60 PSI	4.14 BAR	N/A	1.20 lb./ft.	1.79 KG/m	300ft

Part Number	I.D.		Coupling	Reinforcement	Max. Working Press. @ 68 deg. F		Weight		Standard Length
	in.	mm			PSI	BAR	lb.	KG	ft
Cut - Coupled - Coiled - Tied
4504-2000-050AB	2"	50.80mm	2" AB Pin Lug (M x F)	Knitted	115 PSI	7.93 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4504-3000-050AB	3"	76.20mm	3" AB Pin Lug (M x F)	Knitted	100 PSI	6.89 BAR	22.00 lb./ft.	32.60 KG/m	50ft
4504-2000-050CE	2"	50.80mm	2" Aluminum Cam Lock (C x E)	Knitted	115 PSI	7.93 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4504-3000-050CE	2"	50.80mm	3" Aluminum Cam Lock (C x E)	Knitted	100 PSI	6.89 BAR	22.00 lb./ft.	32.60 KG/m	50ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
