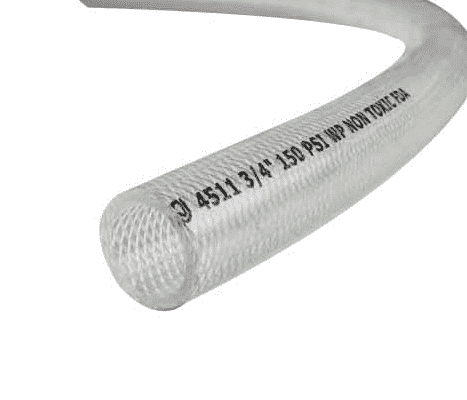

4511-0751 by Jason Industrial | 4511 Series | FDA Braided Hose 150 PSI | 3/4" ID | 0.99" OD | Clear | PVC | 300ft

4511-0751 by Jason Industrial | 4511 Series | FDA Braided Hose 150 PSI | 3/4" ID | 0.99" OD | Clear | PVC | 300ft

Save $1.96 Save $1.96
$329.96
$329.96 - $329.96
$329.96
$328.00
$328.00 - $328.00
$328.00

Jason Industrial Inc. Hose - Food Hose - 4511 FDA Braided PVC Hose - Clear

Package Quantity: 300 FT

Specifications for Variant SKU: 4511-0751 Jason | 300 |
Series: 4511 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.75in
Outer Diameter: 0.99in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: Food and beverage dispensing, potable water, air, breathing lines, packaging and equipment, lube lines and other visual flow applications. SAE Rating: N/A
Other Ratings: FDA Grade Tube and Cover Tube: Crystal Clear, Non-toxic FDA Grade PVC
Reinforcement: One Synthetic Braid Cover: Crystal Clear, Non-toxic FDA Grade PVC
Temperature Range: -14 deg. F (-26 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo WP (PSI) FDA NON-TOXIC, Country of Origin.
Other Features:
  • One piece coils
  • Resists chemical, ozone and weathering.
  • Capable of handling a wide variety of food products
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4511-0251 1/4" 6.35mm 0.45" 11.43mm 1 250 PSI 17.24 BAR N/A 0.04 lb./ft. 0.06 KG/m N/A N/A 300ft
4511-0311 5/16" 7.94mm 0.47" 11.94mm 1 250 PSI 17.24 BAR N/A 0.05 lb./ft. 0.07 KG/m N/A N/A 300ft
4511-0381 3/8" 9.53mm 0.55" 13.97mm 1 200 PSI 13.79 BAR N/A 0.07 lb./ft. 0.10 KG/m N/A N/A 300ft
4511-0501 1/2" 12.70mm 0.69" 17.53mm 1 150 PSI 10.35 BAR N/A 0.10 lb./ft. 0.15 KG/m N/A N/A 300ft
4511-0631 5/8" 15.88mm 0.82" 20.83mm 1 150 PSI 10.35 BAR N/A 0.12 lb./ft. 0.18 KG/m N/A N/A 300ft
4511-0751 3/4" 19.05mm 0.99" 25.15mm 1 150 PSI 10.35 BAR N/A 0.18 lb./ft. 0.27 KG/m N/A N/A 300ft
4511-1001 1" 25.40mm 1.28" 32.51mm 1 125 PSI 8.62 BAR N/A 0.27 lb./ft. 0.40 KG/m N/A N/A 300ft
4511-1251 1-1/4" 31.75mm 1.61" 40.89mm 1 100 PSI 6.89 BAR N/A 0.44 lb./ft. 0.65 KG/m N/A N/A 100ft
4511-1501 1-1/2" 38.10mm 1.85" 46.99mm 1 70 PSI 4.83 BAR N/A 0.51 lb./ft. 0.76 KG/m N/A N/A 100ft
4511-2001 2" 50.80mm 2.39" 60.71mm 1 60 PSI 4.14 BAR N/A 0.74 lb./ft. 1.10 KG/m N/A N/A 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
