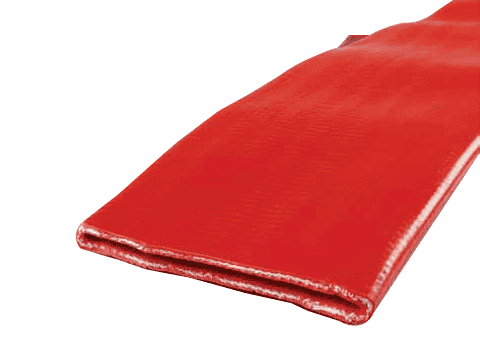

4515-3000 by Jason Industrial | 4515 Series | Water Discharge Hose | Heavy Duty | 125 PSI | 3" ID | 0.098" Wall Thickness | Red | PVC | 300ft

4515-3000 by Jason Industrial | 4515 Series | Water Discharge Hose | Heavy Duty | 125 PSI | 3" ID | 0.098" Wall Thickness | Red | PVC | 300ft

Save $275.40 Save $275.40
$963.90
$963.90 - $963.90
$963.90
$688.50
$688.50 - $688.50
$688.50

Jason Industrial Inc. Hose - Water Hose - 4515 Red PVC Water Discharge Hose - Heavy Duty

Package Quantity: 300 FT

Specifications for Variant SKU: 4515-3000 Jason | 300 |
Series: 4515 Series
Hose Color(s): Red
Internal Diameter: 3in
Tubing Construction: PVC
Cover Construction: PVC

SPECIFICATIONS

Application: For water discharge in construction, agriculture and heavy duty equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: Bright Red, PVC
Reinforcement: Knitted Polyester Yarn Cover: Bright Red, PVC
Temperature Range: -14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • High WP for heavy duty applications
  • Rolls flat for convenient storage
  • Homogeneous construction eliminates tube and cover separation
  • Maximum bonding is due to the tube and cover being extruded simultaneously
Part Number I.D. Wall Thickness Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m ft
Uncoupled
4515-1500 1-1/2" 38.10mm 0.090" 2.29mm Knitted 140 PSI 9.65 BAR N/A 0.22 lb./ft. 0.32 KG/m 300ft
4515-2000 2" 50.80mm 0.090" 2.29mm Knitted 130 PSI 8.96 BAR N/A 0.26 lb./ft. 0.38 KG/m 300ft
4515-2500 2-1/2" 36.50mm 0.098" 2.49mm Knitted 125 PSI 8.61 BAR N/A 0.30 lb./ft. 0.44 KG/m 300ft
4515-3000 3" 76.20mm 0.098" 2.49mm Knitted 125 PSI 8.61 BAR N/A 0.40 lb./ft. 0.59 KG/m 300ft
4515-4000 4" 101.60mm 0.110" 2.79mm Knitted 125 PSI 8.61 BAR N/A 0.62 lb./ft. 0.91 KG/m 300ft
4515-6000 6" 152.40mm 0.111" 2.82mm Knitted 115 PSI 7.92 BAR N/A 1.18 lb./ft. 1.75 KG/m 300ft
4515-8000 8" 203.20mm 0.111" 2.82mm Knitted 70 PSI 4.82 BAR N/A 1.23 lb./ft. 1.83 KG/m 300ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
