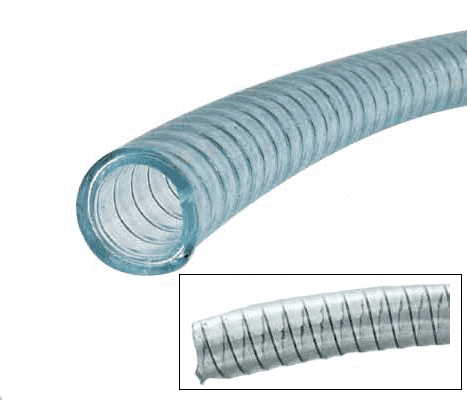

4600-0630 by Jason Industrial | 4600 Series | FDA Spring Wire Hose 100 PSI | 5/8" ID | 0.90" OD | Clear | PVC | 100ft

Save $74.24

$259.85

$259.85 - $259.85

$259.85

$185.61

$185.61 - $185.61

$185.61

Jason Industrial Inc. Hose - Food Hose - 4600 FDA Spring Wire PVC Hose - Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 4600-0630 Jason \| 100 \|
Series:	4600 Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.625in
Outer Diameter:	0.90in
Tubing Construction:	PVC
Cover Construction:	PVC
Applicable Specs & Approvals:	Applicable FDA Requirements

SPECIFICATIONS

Other Features:
Application:	Food and beverage dispensing, air, water, coolant, car wash, deionized water systems and other clear flow applications.	SAE Rating:	N/A
Other Ratings:	FDA Grade Tube and Cover	Tube:	Crystal Clear FDA Grade PVC
Reinforcement:	Electro-Galvanized Spring Steel Wire	Cover:	Crystal Clear FDA Grade PVC
Temperature Range:	-14 deg. F (-26 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	None
Clear food grade PVC allows for visual flow inspection Spring steel wire prevents kinking and collapsing All sizes are full vacuum

Part Number	I.D.		O.D.		Reinforcement	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4600-0380	3/8"	9.53mm	0.63"	16.00mm	Wire Spring	100 PSI	6.89 BAR	29.0 inHg	0.10 lb./ft.	0.15 KG/m	0.80"	19.10mm	100ft
4600-0500	1/2"	12.70mm	0.71"	18.03mm	Wire Spring	100 PSI	6.89 BAR	29.0 inHg	0.13 lb./ft.	0.19 KG/m	1.00"	25.40mm	100ft
4600-0630	5/8"	15.88mm	0.90"	22.86mm	Wire Spring	100 PSI	6.89 BAR	29.0 inHg	0.17 lb./ft.	0.25 KG/m	1.20"	30.00mm	100ft
4600-0750	3/4"	19.05mm	1.06"	26.92mm	Wire Spring	100 PSI	6.89 BAR	29.0 inHg	0.24 lb./ft.	0.36 KG/m	1.30"	34.00mm	100ft
4600-1000	1"	25.40mm	1.31"	33.27mm	Wire Spring	72 PSI	5.17 BAR	29.0 inHg	0.34 lb./ft.	0.51 KG/m	1.70"	41.90mm	100ft
4600-1250	1-1/4"	31.75mm	1.61"	40.89mm	Wire Spring	75 PSI	5.17 BAR	29.0 inHg	0.50 lb./ft.	0.74 KG/m	2.00"	50.80mm	50ft
4600-1500	1-1/2"	38.10mm	1.85"	46.99mm	Wire Spring	50 PSI	3.45 BAR	29.0 inHg	0.55 lb./ft.	0.82 KG/m	2.50"	63.50mm	50ft
4600-2000	2"	5.80mm	2.36"	59.94mm	Wire Spring	50 PSI	3.45 BAR	29.0 inHg	0.84 lb./ft.	1.25 KG/m	3.20"	82.00mm	50ft
4600-2500	2-1/2"	63.50mm	2.97"	75.44mm	Wire Spring	50 PSI	3.45 BAR	29.0 inHg	1.21 lb./ft.	1.80 KG/m	5.50"	139.70mm	50ft
4600-3000	3"	76.20mm	3.51"	89.15mm	Wire Spring	50 PSI	3.45 BAR	29.0 inHg	1.48 lb./ft.	2.20 KG/m	6.50"	165.10mm	50ft
4600-3500	3-1/2"	88.90mm	4.09"	103.89mm	Wire Spring	50 PSI	3.45 BAR	29.0 inHg	1.95 lb./ft.	2.90 KG/m	7.50"	190.50mm	50ft
4600-4000	4"	101.60mm	4.57"	116.08mm	Wire Spring	50 PSI	3.45 BAR	29.0 inHg	2.18 lb./ft.	3.24 KG/m	8.50"	215.90mm	50ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
