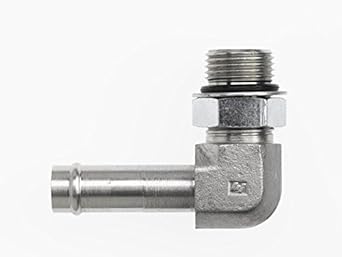

4601-06-10-NWO-FG by Brennan Inc. | -06 Hose Barb x -10 Male Adjustable O-Ring Boss | 90° Elbow | Forged Steel

4601-06-10-NWO-FG by Brennan Inc. | -06 Hose Barb x -10 Male Adjustable O-Ring Boss | 90° Elbow | Forged Steel

$14.23 - $14.23
$14.23
$18.07
$18.07 - $18.07
$18.07

Brennan Inc.
Tube Fittings & Adapters: 4601-NWO Hose Barb x Male Adjustable O-Ring Boss 90° Elbow
Specifications for Variant SKU: 4601-06-10-NWO-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, 5/8in Male O-Ring Boss
Material(s): Steel
Part Number Material B1 Tube O.D. B2 AORB B1 Drill B2 Drill L Length M Length C Hex Y Flats
4601-04-04-NWO-FG Forged Steel 1/4" 7/16-20" 0.189" 0.172" 1.750" 1.030" 0.563" 0.438"
4601-04-06-NWO-FG Forged Steel 1/4" 9/16-18" 0.189" 0.297" 1.810" 1.270" 0.688" 0.625"
4601-05-06-NWO-FG Forged Steel 5/16" 9/16-18" 0.252" 0.297" 1.810" 1.240" 0.688" 0.562"
4601-06-04-NWO-FG Forged Steel 3/8" 7/16-20" 0.297" 0.172" 1.810" 1.190" 0.562" 0.562"
4601-06-06-NWO-FG Forged Steel 3/8" 9/16-18" 0.297" 0.297" 1.812" 1.240" 0.688" 0.562"
4601-06-08-NWO-FG Forged Steel 3/8" 3/4-16" 0.297" 0.391" 1.980" 1.450" 0.875" 0.750"
4601-06-10-NWO-FG Forged Steel - - - - - - - -
4601-08-06-NWO-FG Forged Steel 1/2" 9/16-18" 0.406" 0.297" 1.980" 1.250" 0.688" 0.750"
4601-08-08-NWO-FG Forged Steel 1/2" 3/4-16" 0.406" 0.391" 1.980" 1.449" 0.875" 0.750"
4601-10-08-NWO-FG Forged Steel 5/8" 3/4-16" 0.500" 0.391" 1.980" 1.450" 0.750" 0.812"
4601-10-10-NWO-FG Forged Steel 5/8" 7/8-14" 0.500" 0.484" 2.055" 1.701" 1.000" 0.875"
4601-10-12-NWO-FG Forged Steel 5/8" 1-1/16-12" 0.500" 0.609" 2.232" 1.941" 1.250" 1.062"
4601-12-08-NWO-FG Forged Steel 3/4" 3/4-16" 0.625" 0.391" 2.050" 1.540" 0.875" 0.875"
4601-12-10-NWO-FG Forged Steel 3/4" 7/8-14" 0.625" 0.484" 2.060" 1.700" 1.000" 1.062"
4601-12-12-NWO-FG Forged Steel 3/4" 1-1/16-12" 0.625" 0.609" 2.197" 1.929" 1.250" 1.062"
4601-12-16-NWO-FG Forged Steel 3/4" 1-5/16-12" 0.625" 0.844" 2.360" 2.030" 1.500" 1.312"
4601-14-16-NWO-FG Forged Steel 7/8" 1-5/16-12" 0.719" 0.844" 2.300" 2.039" 1.500" 1.312"
4601-16-10-NWO-FG Forged Steel 1" 7/8-14" 0.844" 0.484" 2.358" 1.920" 1.000" 1.312"
4601-16-12-NWO-FG Forged Steel 1" 1-1/16-12" 0.844" 0.609" 2.358" 2.051" 1.250" 1.312"
4601-16-14-NWO-FG Forged Steel 1" 1-3/16-12" 0.844" 0.719" 2.394" 2.039" 1.375" 1.312"
4601-16-16-NWO-FG Forged Steel 1" 1-5/16-12" 0.844" 0.844" 2.394" 2.039" 1.500" 1.312"
4601-16-20-NWO-FG Forged Steel 1" 1-5/8-12" 0.844" 1.078" 2.450" 2.230" 1.875" 1.625"
4601-20-12-NWO-FG Forged Steel 1-1/4" 1-1/16-12" 1.094" 0.609" 2.614" 2.240" 1.250" 1.625"
4601-20-16-NWO-FG Forged Steel 1-1/4" 1-5/16-12" 1.094" 0.844" 2.450" 2.250" 1.500" 1.625"
4601-20-20-NWO-FG Forged Steel 1-1/4" 1-5/8-12" 1.094" 1.078" 2.375" 2.250" 1.875" 1.750"
4601-20-24-NWO-FG Forged Steel 1-1/4" 1-7/8-12" 1.094" 1.312" 2.500" 2.400" 2.125" 2.000"
4601-24-16-NWO-FG Forged Steel 1-1/2" 1-5/16-12" 1.344" 0.844" 2.697" 2.390" 1.500" 1.875"
4601-24-20-NWO-FG Forged Steel 1-1/2" 1-5/8-12" 1.343" 1.078" 2.700" 2.380" 1.875" 1.875"
4601-24-24-NWO-FG Forged Steel 1-1/2" 1-7/8-12" 1.344" 1.312" 2.697" 2.382" 2.125" 1.875"
4601-32-20-NWO-FG Forged Steel 2" 1-5/8-12" 1.843" 1.078" 3.060" 2.890" 1.875" 2.500"
4601-32-24-NWO-FG Forged Steel 2" 1-7/8-12" 1.843" 1.312" 3.060" 2.890" 2.125" 2.500"
4601-32-32-NWO-FG Forged Steel 2" 2-1/2-12" 1.843" 1.781" 2.812" 2.890" 2.750" 2.625"
