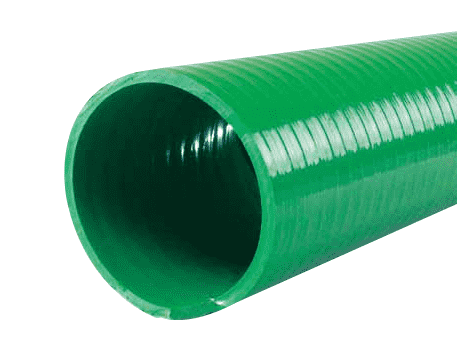

4601-1500 by Jason Industrial | 4061 Series | Water Suction Hose | 100 PSI | 1-1/2" ID | 1.77" OD | Green | PVC | 100ft

4601-1500 by Jason Industrial | 4061 Series | Water Suction Hose | 100 PSI | 1-1/2" ID | 1.77" OD | Green | PVC | 100ft

Save $64.66 Save $64.66
$226.32
$226.32 - $226.32
$226.32
$161.66
$161.66 - $161.66
$161.66

Jason Industrial Inc. Hose - Water Hose - 4601 Green PVC Water Suction Hose

Package Quantity: 100 FT

Specifications for Variant SKU: 4601-1500 Jason | 100 |
Series: 4601 Series
Hose Color(s): Green
Internal Diameter: 1.50in
Outer Diameter: 1.77in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Suction, discharge or gravity flow of water, salt water and oily water in construction, agriculture, mining or equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: PVC, Smooth, Green
Reinforcement: PVC Helix Cover: PVC, Smooth to Lightly Corrugated
Temperature Range: -14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Cover is weather, ozone and UV resistant
  • Lightweight and flexible
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4601-0750 3/4" 19.05mm 0.95" 24.13mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.16 lb./ft. 0.24 KG/m 2.00" 50.80mm 100ft
4601-1000 1" 25.40mm 1.22" 30.99mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.20 lb./ft. 0.30 KG/m 5.00" 127.00mm 100ft
4601-1250 1-1/4" 31.75mm 1.41" 35.81mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.26 lb./ft. 0.39 KG/m 6.00" 152.40mm 100ft
4601-1500 1-1/2" 38.10mm 1.77" 44.96mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.35 lb./ft. 0.52 KG/m 7.00" 177.80mm 100ft
4601-2000 2" 50.80mm 2.32" 58.93mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.54 lb./ft. 0.80 KG/m 9.00" 228.60mm 100ft
4601-2500 2-1/2" 63.50mm 2.87" 72.90mm PVC Helix 80 PSI 5.52 BAR 26.0 inHg 0.70 lb./ft. 1.04 KG/m 11.00" 279.40mm 100ft
4601-3000 3" 76.20mm 3.35" 85.09mm PVC Helix 75 PSI 5.17 BAR 26.0 inHg 0.93 lb./ft. 1.38 KG/m 14.00" 355.60mm 100ft
4601-4000 4" 101.60mm 4.49" 114.05mm PVC Helix 60 PSI 4.14 BAR 26.0 inHg 1.48 lb./ft. 2.20 KG/m 18.00" 457.20mm 100ft
4601-6050 6" 152.50mm 6.46" 164.08mm PVC Helix 50 PSI 3.45 BAR 26.0 inHg 2.89 lb./ft. 4.30 KG/m 31.00" 787.40mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
