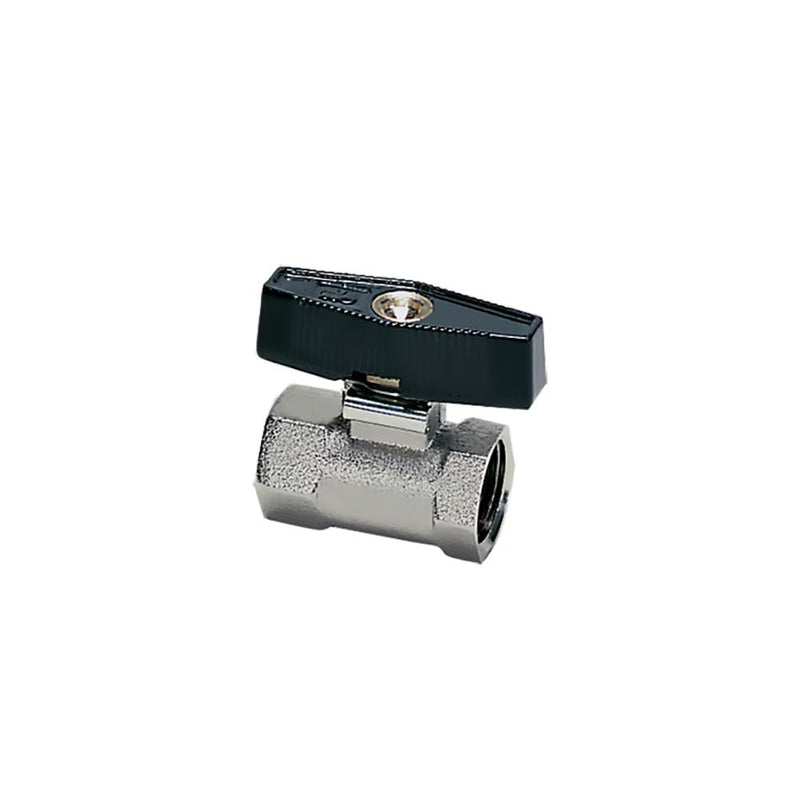

4602 07 17 by Parker | Butterfly Shut-Off Valve | 3/8" Female BSPP Thread | 22 mm Hex | 54 mm Length | Straight | Nickel-Plated Brass

Save $50.29

$125.73

$125.73 - $125.73

$125.73

$75.44

$75.44 - $75.44

$75.44

by Parker Hannifin
Needle Valve Series:4602 2/2 Butterfly Shut-Off Valve, Female BSPP Thread

Quantity

Specifications for Variant SKU: 4602 07 17 Parker
Series:	4602 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Zamak
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Water Hammer Resistance

Technical Characteristics:	Compatible Fluids: Compressed air, abrasive fluids Working Pressure: 0 to 16 bar Working Temperature: -20°C to +80°C
Advantages:	Compatible with abrasive fluids (including solid particles) Fluid flow direction marked (uni-directional) Small size Simple and efficient design
Regulations:	PED RoHS REACH
Component Materials:	Stem: Brass Flap: Stainless Steel Body: Nickel-plated shot blasted brass Lever: Zamak, black epoxy paint O-ring: NBR


Part Number	Diameter Nominal (DN)	C	E	F	H	L	M	Kg
4602 06 13	6 mm	1/4"	9 mm	17 mm	35 mm	34 mm	54 mm	.102 Kg
4602 07 17	7 mm	3/8"	11 mm	22 mm	35 mm	39 mm	54 mm	.136 Kg
4602 10 21	10 mm	1/2"	12 mm	24 mm	37 mm	42 mm	54 mm	.140 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
