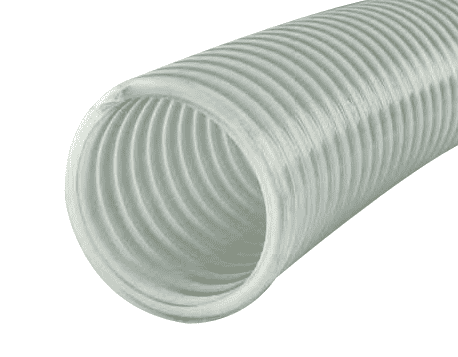

4615-1500 by Jason Industrial | 4615 Series | Helix Water Suction Hose | 100 PSI | 1-1/2" ID | 1.77" OD | Clear/White | PVC | 100ft

4615-1500 by Jason Industrial | 4615 Series | Helix Water Suction Hose | 100 PSI | 1-1/2" ID | 1.77" OD | Clear/White | PVC | 100ft

Save $64.66 Save $64.66
$226.32
$226.32 - $226.32
$226.32
$161.66
$161.66 - $161.66
$161.66

Jason Industrial Inc. Hose - Water Hose - 4615 Clear/White Helix PVC Water Suction Hose

Package Quantity: 100 FT

Specifications for Variant SKU: 4615-1500 Jason | 100 |
Series: 4615 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 1.50in
Outer Diameter: 1.77in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Suction, discharge or gravity flow of water, salt water and oily water in construction, agriculture, mining or equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: PVC, Smooth, Clear
Reinforcement: PVC Helix Cover: PVC, Smooth to Lightly Corrugated
Temperature Range: -14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Cover is weather, ozone and UV resistant
  • Lightweight and flexible
  • Allows for visual flow inspection
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4615-0750 3/4" 19.05mm 0.95" 24.13mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.16 lb./ft. 0.24 KG/m 2.00" 50.80mm 100ft
4615-1000 1" 25.40mm 1.22" 30.99mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.20 lb./ft. 0.30 KG/m 5.00" 127.00mm 100ft
4615-1250 1-1/4" 31.75mm 1.41" 35.81mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.26 lb./ft. 0.39 KG/m 6.00" 152.40mm 100ft
4615-1500 1-1/2" 38.10mm 1.77" 44.96mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.35 lb./ft. 0.52 KG/m 7.00" 177.80mm 100ft
4615-2000 2" 50.80mm 2.32" 58.93mm PVC Helix 100 PSI 6.89 BAR 28.0 inHg 0.54 lb./ft. 0.80 KG/m 9.00" 228.60mm 100ft
4615-2500 2-1/2" 63.50mm 2.87" 72.90mm PVC Helix 80 PSI 5.52 BAR 26.0 inHg 0.70 lb./ft. 1.04 KG/m 11.000" 279.40mm 100ft
4615-3000 3" 76.20mm 3.35" 85.09mm PVC Helix 75 PSI 5.17 BAR 26.0 inHg 0.93 lb./ft. 1.38 KG/m 14.00" 355.60mm 100ft
4615-4000 4" 101.60mm 4.49" 114.05mm PVC Helix 60 PSI 4.14 BAR 26.0 inHg 1.48 lb./ft. 2.20 KG/m 18.00" 457.20mm 100ft
4615-6050 6" 152.50mm 6.46" 164.08mm PVC Helix 50 PSI 3.45 BAR 26.0 inHg 2.89 lb./ft. 4.30 KG/m 31.00" 787.40mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
