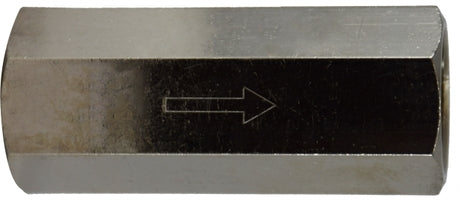

46201 (46-201) Midland Pneumatic Check Valve (220 PSI) - 3/8" Female NPT Inlet x 3/8" Female NPSM Outlet - Chrome Plated Brass

46201 "46-201" by Midland | Pneumatic Check Valve | 3/8" Female NPT Inlet x 3/8" Female NPSM Outlet | 220 PSI | Chrome Plated Brass

Save $11.49 Save $11.49
$28.72
$28.72 - $28.72
$28.72
$17.23
$17.23 - $17.23
$17.23

Midland Industries
Brass Fitting - Pneumatic Check Valve - Female NPT x Female NPSM - Brass

Max Operating Pressure: 220 PSI

Inventory @ Manufacturers Warehouse: 164 Units
Specifications for Variant SKU: 46201 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPT, 3/8in Female NPSM
Material(s): Chrome Plated Brass
Seal Material(s): NBR
Features:
  • Working Pressure: 14.5-145 PSI
  • Cracking Pressure: 2.8 PSI
  • Maximum Temperatures: 140° F
  • Body: Chrome plated Brass
  • Spring: Steel
  • O-Ring: NBR Rubber
Part Number Female NPT Inlet Female NPSM Outlet A B
46200
(46-200)		 1/4" 1/4" 1.97" 0.67"
46201
(46-201)		 3/8" 3/8" 1.97" 0.83"
46202
(46-202)		 1/2" 1/2" 2.48" 0.98"

Dimension Data can change without notice.
