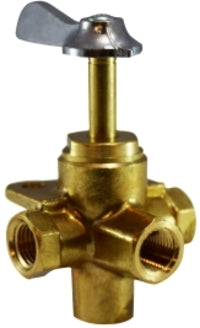

46257 (46-257) by Midland | Less Click 4 Way Ball Valve | Bottom Outlet | 1/4" Female Pipe | Cross | Brass

Save $18.63

$46.57

$46.57 - $46.57

$46.57

$27.94

$27.94 - $27.94

$27.94

Midland Industries
Brass Fitting - Specialty Valve Fitting - Less Click 4 Way Ball Valve - Bottom Outlet - Brass

Inventory @ Manufacturers Warehouse: 123 Units

Specifications for Variant SKU: 46257 Midland
Shape (Orientation):	Cross
Ends Configuration:	1/4in Female NPT, 1/4in Female NPT, 1/4in Female NPT, 1/4in Female NPT, Some Ends Match
Material(s):	Brass

Features:
Side Outlet. Bracket Mounting. O-Ring Sealed. 4-way celcon roter standard.


Part Number	A-B-C-D Female Pipe Thread	Length of Stem
46257 (46-257)	1/4"	1-3/8"

Openings:
Handle Pointer over A..........Valve Open A-D
Handle Pointer over C..........Valve Open C-D
Handle Pointer over B..........Valve Open B-D
Handle Pointer over Bracket..........Valve "OFF"

Dimension Data can change without notice.
