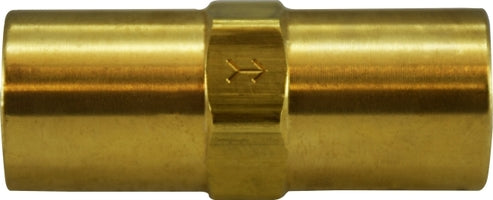

46560 (46-560) by Midland | Check Valve (500 PSI) | 1/8" Female Pipe x 1/8" Female Pipe | Buna-N Seal | Straight | Brass

Save $13.57

$33.93

$33.93 - $33.93

$33.93

$20.36

$20.36 - $20.36

$20.36

Midland Industries
Brass Fitting - Check Valve - Female Pipe x Female Pipe - Brass

500 PSI

Specifications for Variant SKU: 46560 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
1 PSI Cracking Pressure 180° temp rating Buna-N Seal for water, air & inert gas Viton Seal for oil, gas & diesel fuel

Buna-N Part Number	Viton Part Number	Female Pipe x Female Pipe
46560 (46-560)	46560V (46-560V)	1/8" x 1/8"
46561 (46-561)	46561V (46-561V)	1/4" x 1/4"
46562 (46-562)	46562V (46-562V)	3/8" x 3/8"
46563 (46-563)	46563V (46-563V)	1/2" x 1/2"
46564 (46-564)	46564V (46-564V)	3/4" x 3/4"

Dimension Data can change without notice.
