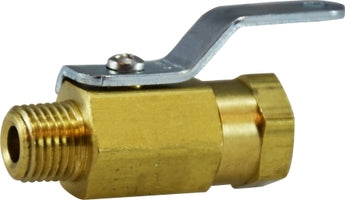

46903 (46-903) Midland Miniature Ball Valve - 1/4" Male Pipe x 1/4" Female Pipe - Brass

46903 by Midland | Miniature Ball Valve | 1/4" Male Pipe x 1/4" Female Pipe | Brass

Save $11.98 Save $11.98
$29.95
$29.95 - $29.95
$29.95
$17.97
$17.97 - $17.97
$17.97

Midland Industries
Brass Fitting - Miniature Ball Valve - Male Pipe x Female Pipe - Brass

Ideal for tight, confined areas, or when routing aesthetics are desired. Applications include water, oil, and air pressure systems.

Inventory @ Manufacturers Warehouse: 512 Units
Specifications for Variant SKU: 46903 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Female NPT
Material(s): Brass
Seal Material(s): Viton
Features:
  • Working Pressure up to 1000 P.S.I.G.
  • ASTM B-16 Corrosion Resistant brass body.
  • Non-Adjusting Viton O-Ring stem seal design never needs tightening.
  • Highly inert Teflon seats.
  • Long life nickel plated brass ball.
  • Blow-Out proof stem for safety.
  • Temperature: -40°F to 300°F
  • 1/4 turn instantaneous on-off operation.
  • Quarter turn handle design.
Part Number Male Pipe x Female Pipe
46900
(46-900)		 1/8" x 1/8"
46903
(46-903)		 1/4" x 1/4"

Dimension Data can change without notice.
