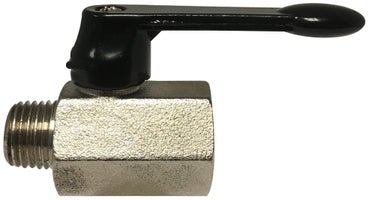

46930L (46-930L) by Midland | Mini Ball Valve | Lever Handle (Viton Seals) | 1/8" Male NPT x 1/8" Female NPT | Straight | Chrome Plated Brass

Save $4.42

$11.05

$11.05 - $11.05

$11.05

$6.63

$6.63 - $6.63

$6.63

Midland Industries
Mini Ball Valve - Lever Handle (Viton Seals) - Male NPT x Female NPT - Chrome Plated Brass

450 PSI working pressure

Specifications for Variant SKU: 46930L Midland
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male NPT, 1/8in Female NPT, Some Ends Match
Material(s):	Chrome Plated Brass

Features:
At 212°F - 355 PSI At 356°F - 142 PSI Not lead free
Construction:
Chrome plated forged brass body Chrome plated brass ball 1/4 Turn Alumzinc handle Made in China
Specifications:
NPT taper ANSI B1.20.1 threads

Part	Components	Materials	N
1	Body	CP Forged Brass	1
2	Ball Seats	PTFE	2
3	Ball	CP Brass	1
4	Ring Unit	Brass	1
5	Stem	Brass	1
6	O-Ring (flag handle)	NBR 80	1


Part Number	Size	A	D(Flow)	F	G	Weight
46930L (46-930L)	1/8"	1.57"	0.24"	1.99"	1.50"	0.17
46931L (46-931L)	1/4"	1.57"	0.31"	1.99"	1.50"	0.15
46932L (46-932L)	3/8"	1.57"	0.28"	1.99"	1.50"	0.21
46933L (46-933L)	1/2"	1.77"	0.35"	1.99"	1.59"	0.24
