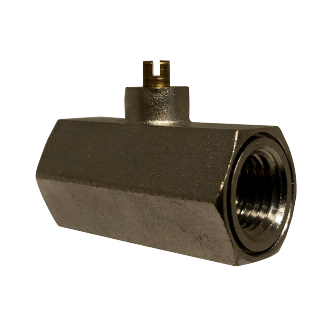

46934LS (46-934LS) by Midland | Mini Ball Valve | Screwdriver Handle (Viton Seals) | 1/8" Female NPT x 1/8" Female NPT | Straight | Chrome Plated Brass

Name: 46934LS (46-934LS) by Midland | Mini Ball Valve | Screwdriver Handle (Viton Seals) | 1/8" Female NPT x 1/8" Female NPT | Straight | Chrome Plated Brass
Brand: Midland Industries
SKU: 46934LS Midland
Price: 5.29 USD
Availability: InStock

Save $3.53

$8.82

$8.82 - $8.82

$8.82

$5.29

$5.29 - $5.29

$5.29

Midland Industries
Mini Ball Valve - Screwdriver Handle (Viton Seals) - Female NPT x Female NPT - Chrome Plated Brass

450 PSI working pressure

Specifications for Variant SKU: 46934LS Midland
Shape (Orientation):	Straight
Ends Configuration:	1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s):	Chrome Plated Brass
Seal Material(s):	Viton/FKM

Features:
At 212°F - 355 PSI At 356°F - 142 PSI Not lead free
Construction:
Chrome plated forged brass body Chrome plated brass ball 1/4 Turn Alumzinc handle Made in China
Specifications:
NPT taper ANSI B1.20.1 threads

Part	Components	Materials	N
1	Body	CP Forged Brass	1
2	Ball Seats	PTFE	2
3	Ball	CP Brass	1
4	Ring Unit	Brass	1
5	Stem	Brass	1
6	O-Ring (flag handle)	NBR 80	1
6	O-Ring (all others)	Fluoroelastomer	1


Part Number	Size	A	D(Flow)	Weight
46934LS (46-934LS)	1/8"	1.57"	0.24"	0.21 lbs
46935LS (46-935LS)	1/4"	1.57"	0.31"	0.20 lbs
46936LS (46-936LS)	3/8"	1.57"	0.28"	0.22 lbs
46937LS (46-937LS)	1/2"	1.77"	0.35"	0.24 lbs
