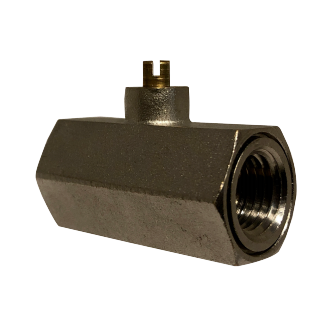

46936LS (46-936LS) by Midland | Mini Ball Valve | Screwdriver Handle (Viton Seals) | 3/8" Female NPT x 3/8" Female NPT | Straight | Chrome Plated Brass

46936LS (46-936LS) by Midland | Mini Ball Valve | Screwdriver Handle (Viton Seals) | 3/8" Female NPT x 3/8" Female NPT | Straight | Chrome Plated Brass

Save $2.85 Save $2.85
$7.12
$7.12 - $7.12
$7.12
$4.27
$4.27 - $4.27
$4.27

Midland Industries
Mini Ball Valve - Screwdriver Handle (Viton Seals) - Female NPT x Female NPT - Chrome Plated Brass

450 PSI working pressure
Specifications for Variant SKU: 46936LS Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPT, 3/8in Female NPT, Some Ends Match
Material(s): Chrome Plated Brass
Seal Material(s): Viton/FKM
Features:
  • At 212°F - 355 PSI
  • At 356°F - 142 PSI
  • Not lead free
Construction:
  • Chrome plated forged brass body
  • Chrome plated brass ball
  • 1/4 Turn Alumzinc handle
  • Made in China
Specifications:
  • NPT taper ANSI B1.20.1 threads
Part Components Materials N
1 Body CP Forged Brass 1
2 Ball Seats PTFE 2
3 Ball CP Brass 1
4 Ring Unit Brass 1
5 Stem Brass 1
6 O-Ring (flag handle) NBR 80 1
6 O-Ring (all others) Fluoroelastomer 1
Part Number Size A D(Flow) Weight
46934LS
(46-934LS)		 1/8" 1.57" 0.24" 0.21 lbs
46935LS
(46-935LS)		 1/4" 1.57" 0.31" 0.20 lbs
46936LS
(46-936LS)		 3/8" 1.57" 0.28" 0.22 lbs
46937LS
(46-937LS)		 1/2" 1.77" 0.35" 0.24 lbs

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
