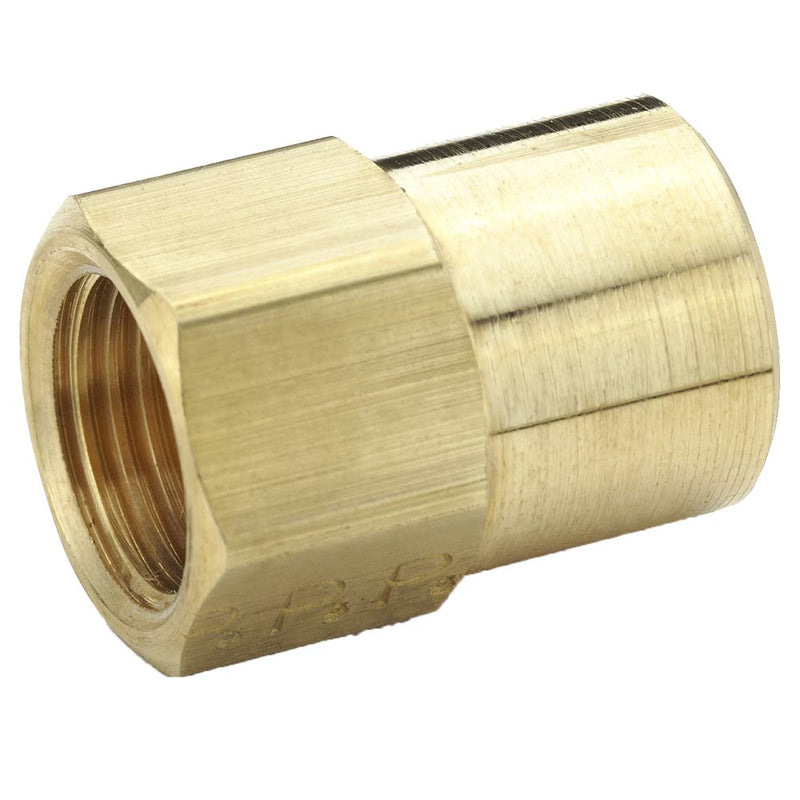

46IFHD-4-2 by Parker | Inverted Flare Fittings | Connector | 1/4" Inverted Flare x 1/8" Female Pipe Thread | 17/32" Hex | .78" Length | Straight | Brass | Pack of 25

46IFHD-4-2 by Parker | Inverted Flare Fittings | Connector | 1/4" Inverted Flare x 1/8" Female Pipe Thread | 17/32" Hex | .78" Length | Straight | Brass | Pack of 25

Save $58.71 Save $58.71
$146.78
$146.78 - $146.78
$146.78
$88.07
$88.07 - $88.07
$88.07

by Parker Hannifin
Inverted Flared Fittings:Female Connector 46IFHD

Package Quantity: 25 Units

Specifications for Variant SKU: 46IFHD-4-2 Parker | 25 |
Series: 46IFHD Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, UL Listed
Product Features:
  • All brass construction
  • UL listed for flammable liquid and gas
  • Meets functional requirements of SAE J512
  • Steel nut for economy
Markets:
  • Air Conditioning
  • Marine
  • Mobile
  • Engines
Applications:
  • Refrigerant Lines
  • Brake Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Aluminum
  • Welded Steel Hydraulic Tubing
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L Flow Diameter (D)
46IFHD-3-2 3/16" 1/8" 3/8"-24 1/2" .76" .125"
46IFHD-4-2 1/4" 1/8" 7/16"-24 17/32" .78" .189"
46IFHD-5-2 5/16" 1/8" 1/2"-20 19/32" .79" .220"
46IFHD-6-4 3/8" 1/4" 5/8"-18 3/4" 1.04" .282"
