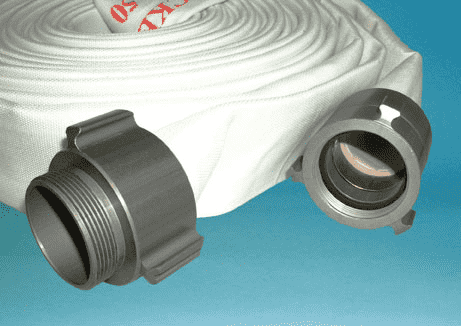

4703-1500-050ERNPS by Jason Industrial | 4703 Series | Heavy Duty Double Jacket (DJ) Mill Discharge Hose Assembly | 1-1/2" ID | NPS Male x Female Rocker Lug | White | 50ft

4703-1500-050ERNPS by Jason Industrial | 4703 Series | Heavy Duty Double Jacket (DJ) Mill Discharge Hose Assembly | 1-1/2" ID | NPS Male x Female Rocker Lug | White | 50ft

Save $43.97 Save $43.97
$153.90
$153.90 - $153.90
$153.90
$109.93
$109.93 - $109.93
$109.93

Jason Industrial Inc. Hose - Water Hose - 4703 Heavy Duty Double Jacket (DJ) Mill Discharge Hose & Assemblies - White

Package Quantity: 50 FT

Specifications for Variant SKU: 4703-1500-050ERNPS Jason
Series: 4703 Series
Hose Color(s): White/Off-White
Internal Diameter: 1.50in
Tubing Construction: SBR
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Male NPS, 1-1/2in Female NPS

SPECIFICATIONS

Application: Municipal washdown or hydrant-to-truck water supply line. Heavy duty equipment/pump rental, ship/deck washdown. SAE Rating: N/A
Other Ratings: N/A Tube: SBR, Smooth, Black
Reinforcement: N/A Cover: Double Jacket, 100% Polyester
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Service Pressure 300 PSI
Other Features:
  • Double cover gives heavy duty abrasion resistance
  • Rolls flat for easy storage
  • Economical, lightweight and flexible
  • Double cover increases service pressure rating
  • Couplings are internally expanded, aluminum, hardcoated NPS or NST Male x Female rocker lug
  • Note: Assembly is rated at 150 PSI.
Part Number I.D. Coupling Bowl Reinforcement Plies Service Press. Test Press. Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR PSI BAR inHg lb./ft. KG/m ft
Uncoupled - Bulk
4703-1500 1-1/2" 38.10mm 1.94" 46.04mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.26 lb./ft. 0.39 KG/m 50ft
4703-2000 2" 50.80mm 2.50" 58.74mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.26 lb./ft. 0.39 KG/m 50ft
4703-2500 2-1/2" 63.50mm 2.81" 71.44mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.45 lb./ft. 0.67 KG/m 50ft
4703-1501 1-1/2" 38.10mm 1.94" 46.04mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.26 lb./ft. 0.39 KG/m 100ft
4703-2001 2" 50.80mm 2.50" 58.74mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.33 lb./ft. 0.49 KG/m 100ft
4703-2501 2-1/2" 63.50mm 2.81" 71.44mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.45 lb./ft. 0.67 KG/m 100ft
Part Number I.D. Reinforcement Plies Thread Weight Standard Length
in. mm lb. KG ft
Cut - Coupled - Coiled - Tied
4703-1500-050ERNPS 1-1/2" 38.10mm N/A NPS Male x Female Rocker Lug 15.00 lb./ft. 22.32 KG/m 50ft
4703-1500-050ERNST 1-1/2" 38.10mm N/A NST Male x Female Rocker Lug 15.00 lb./ft. 22.32 KG/m 50ft
4703-2000-050ERNPS 2" 50.80mm N/A NPS Male x Female Rocker Lug 20.00 lb./ft. 29.76 KG/m 50ft
4703-2500-050ERNPS 2-1/2" 63.50mm N/A NPS Male x Female Rocker Lug 25.00 lb./ft. 37.20 KG/m 50ft
4703-2500-050ERNST 2-1/2" 63.50mm N/A NST Male x Female Rocker Lug 25.00 lb./ft. 37.20 KG/m 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
