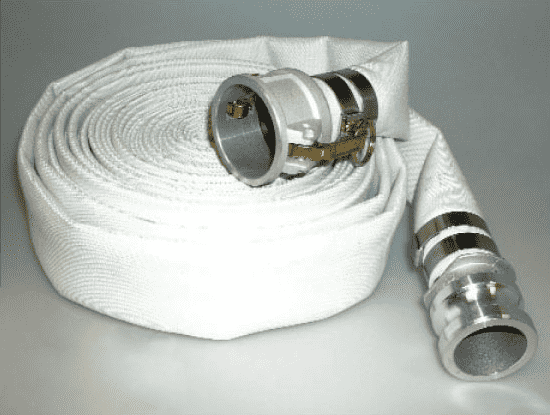

4705-0200-050CE by Jason Industrial | 4705 Series | Municipal Grade Single Jacket (SJ) Mill Discharge Hose Assembly | 230 PSI | 2" ID | M x F 2" AL Cam Lock (C x E) | White | 50ft

Save $40.21

$140.74

$140.74 - $140.74

$140.74

$100.53

$100.53 - $100.53

$100.53

Jason Industrial Inc. Hose - Water Hose - 4705 Municipal Grade Single Jacket (SJ) Mill Discharge Hose & Assemblies - White

Package Quantity: 50 FT

Specifications for Variant SKU: 4705-0200-050CE Jason
Series:	4705 Series
Hose Color(s):	White/Off-White
Internal Diameter:	2in
Tubing Construction:	SBR
Cover Construction:	Polyester Textile Braid

SPECIFICATIONS

Other Features:
Application:	For water discharge service in rental yards, fleet service, municipal washdown and utility dewatering.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	SBR, Smooth, Black
Reinforcement:	N/A	Cover:	Single Jacket, 100% Polyester
Temperature Range:	-25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	ID SJ Mill WP (PSI) (BAR)
HD synthetic cover gives better abrasion resistance Rolls flat for convenient storage Economical, lightweight and flexible Hose is designed for higher working pressures Note: Assembly is rated at 150 PSI.

Part Number	I.D.		Coupling Bowl		Reinforcement Plies	Working Pressure		Burst Pressure		Vacuum @ 68 deg. F	Weight		Standard Length
	in.	mm	in.	mm		PSI	BAR	PSI	BAR	inHg	lb./ft.	KG/m	ft
Uncoupled - Bulk
4705-0150-050	1-1/2"	38.10mm	1.81"	46.04mm	N/A	230 PSI	15.86 BAR	345 PSI	23.79 BAR	N/A	0.23 lb./ft.	0.34 KG/m	50ft
4705-0150-100	1-1/2"	38.10mm	1.81"	46.04mm	N/A	230 PSI	15.86 BAR	345 PSI	23.79 BAR	N/A	0.23 lb./ft.	0.34 KG/m	100ft
4705-0200-050	2"	50.80mm	2.31"	58.74mm	N/A	230 PSI	15.86 BAR	345 PSI	23.79 BAR	N/A	0.28 lb./ft.	0.42 KG/m	50ft
4705-0200-100	2"	50.80mm	2.31"	58.74mm	N/A	230 PSI	15.86 BAR	345 PSI	23.79 BAR	N/A	0.28 lb./ft.	0.42 KG/m	100ft
4705-0250-050	2-1/2"	63.50mm	2.81"	71.44mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.39 lb./ft.	0.58 KG/m	50ft
4705-0250-100	2-1/2"	63.50mm	2.81"	71.44mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.39 lb./ft.	0.58 KG/m	100ft
4705-0300-050	3"	76.20mm	3.38"	85.73mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.50 lb./ft.	0.74 KG/m	50ft
4705-0300-100	3"	76.20mm	3.38"	85.73mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.50 lb./ft.	0.74 KG/m	100ft
4705-0400-050	4"	101.60mm	4.38"	111.13mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.66 lb./ft.	0.98 KG/m	50ft
4705-0400-100	4"	101.60mm	4.38"	111.13mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.66 lb./ft.	0.98 KG/m	100ft
4705-0600-050	6"	152.40mm	6.38"	161.93mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	1.00 lb./ft.	1.49 KG/m	50ft

Part Number	I.D.		Description	Max. Working Pressure		Weight		Standard Length
	in.	mm		PSI	BAR	lb.	KG	ft
Cut - Coupled - Coiled - Tied
4705-0150-050AB	1-1/2"	38.10mm	CPLD M x F AB Pin Lug with 5/8" Bands	230 PSI	15.86 BAR	8.00 lb./ft.	11.90 KG/m	50ft
4705-0200-050AB	2"	50.80mm	CPLD M x F AB Pin Lug with 5/8" Bands	230 PSI	15.86 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4705-0300-050AB	3"	76.20mm	CPLD M x F AB Pin Lug with 5/8" Bands	200 PSI	13.79 BAR	22.00 lb./ft.	32.80 KG/m	50ft
4705-0150-050CE	1-1/2"	38.10mm	CPLD M x F 1-1/2" AL Cam Lock (C x E)	230 PSI	15.86 BAR	8.00 lb./ft.	11.90 KG/m	50ft
4705-0200-050CE	2"	50.80mm	CPLD M x F 2" AL Cam Lock (C x E)	230 PSI	15.86 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4705-0300-050CE	3"	76.20mm	CPLD M x F 3" AL Cam Lock (C x E)	200 PSI	13.79 BAR	22.00 lb./ft.	32.80 KG/m	50ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
