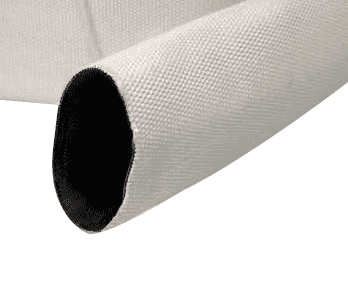

4705-0400-100 by Jason Industrial | 4705 Series | Municipal Grade Single Jacket (SJ) Mill Discharge Hose | 200 PSI | 4" ID | 4.38" Bowl | White | 100ft

Save $2.63

$262.63

$262.63 - $262.63

$262.63

$260.00

$260.00 - $260.00

$260.00

Jason Industrial Inc. Hose - Water Hose - 4705 Municipal Grade Single Jacket (SJ) Mill Discharge Hose & Assemblies - White

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4705-0400-100 Jason \| 100 \|
Series:	4705 Series
Hose Color(s):	White/Off-White
Internal Diameter:	4in
Tubing Construction:	SBR
Cover Construction:	Polyester Textile Braid

SPECIFICATIONS

Other Features:
Application:	For water discharge service in rental yards, fleet service, municipal washdown and utility dewatering.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	SBR, Smooth, Black
Reinforcement:	N/A	Cover:	Single Jacket, 100% Polyester
Temperature Range:	-25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	ID SJ Mill WP (PSI) (BAR)
HD synthetic cover gives better abrasion resistance Rolls flat for convenient storage Economical, lightweight and flexible Hose is designed for higher working pressures Note: Assembly is rated at 150 PSI.

Part Number	I.D.		Coupling Bowl		Reinforcement Plies	Working Pressure		Burst Pressure		Vacuum @ 68 deg. F	Weight		Standard Length
	in.	mm	in.	mm		PSI	BAR	PSI	BAR	inHg	lb./ft.	KG/m	ft
Uncoupled - Bulk
4705-0150-050	1-1/2"	38.10mm	1.81"	46.04mm	N/A	230 PSI	15.86 BAR	345 PSI	23.79 BAR	N/A	0.23 lb./ft.	0.34 KG/m	50ft
4705-0150-100	1-1/2"	38.10mm	1.81"	46.04mm	N/A	230 PSI	15.86 BAR	345 PSI	23.79 BAR	N/A	0.23 lb./ft.	0.34 KG/m	100ft
4705-0200-050	2"	50.80mm	2.31"	58.74mm	N/A	230 PSI	15.86 BAR	345 PSI	23.79 BAR	N/A	0.28 lb./ft.	0.42 KG/m	50ft
4705-0200-100	2"	50.80mm	2.31"	58.74mm	N/A	230 PSI	15.86 BAR	345 PSI	23.79 BAR	N/A	0.28 lb./ft.	0.42 KG/m	100ft
4705-0250-050	2-1/2"	63.50mm	2.81"	71.44mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.39 lb./ft.	0.58 KG/m	50ft
4705-0250-100	2-1/2"	63.50mm	2.81"	71.44mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.39 lb./ft.	0.58 KG/m	100ft
4705-0300-050	3"	76.20mm	3.38"	85.73mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.50 lb./ft.	0.74 KG/m	50ft
4705-0300-100	3"	76.20mm	3.38"	85.73mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.50 lb./ft.	0.74 KG/m	100ft
4705-0400-050	4"	101.60mm	4.38"	111.13mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.66 lb./ft.	0.98 KG/m	50ft
4705-0400-100	4"	101.60mm	4.38"	111.13mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	0.66 lb./ft.	0.98 KG/m	100ft
4705-0600-050	6"	152.40mm	6.38"	161.93mm	N/A	200 PSI	13.79 BAR	300 PSI	20.68 BAR	N/A	1.00 lb./ft.	1.49 KG/m	50ft

Part Number	I.D.		Description	Max. Working Pressure		Weight		Standard Length
	in.	mm		PSI	BAR	lb.	KG	ft
Cut - Coupled - Coiled - Tied
4705-0150-050AB	1-1/2"	38.10mm	CPLD M x F AB Pin Lug with 5/8" Bands	230 PSI	15.86 BAR	8.00 lb./ft.	11.90 KG/m	50ft
4705-0200-050AB	2"	50.80mm	CPLD M x F AB Pin Lug with 5/8" Bands	230 PSI	15.86 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4705-0300-050AB	3"	76.20mm	CPLD M x F AB Pin Lug with 5/8" Bands	200 PSI	13.79 BAR	22.00 lb./ft.	32.80 KG/m	50ft
4705-0150-050CE	1-1/2"	38.10mm	CPLD M x F 1-1/2" AL Cam Lock (C x E)	230 PSI	15.86 BAR	8.00 lb./ft.	11.90 KG/m	50ft
4705-0200-050CE	2"	50.80mm	CPLD M x F 2" AL Cam Lock (C x E)	230 PSI	15.86 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4705-0300-050CE	3"	76.20mm	CPLD M x F 3" AL Cam Lock (C x E)	200 PSI	13.79 BAR	22.00 lb./ft.	32.80 KG/m	50ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
