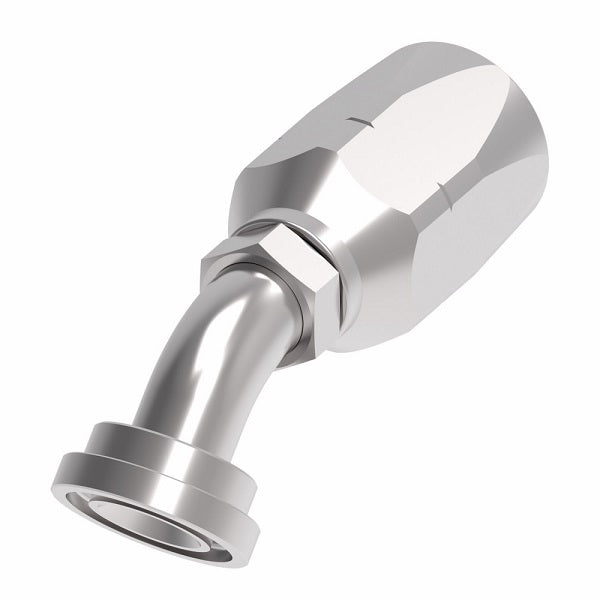

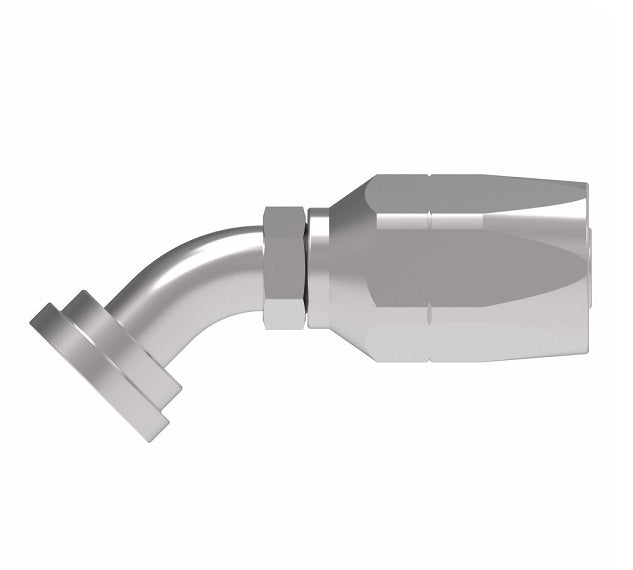

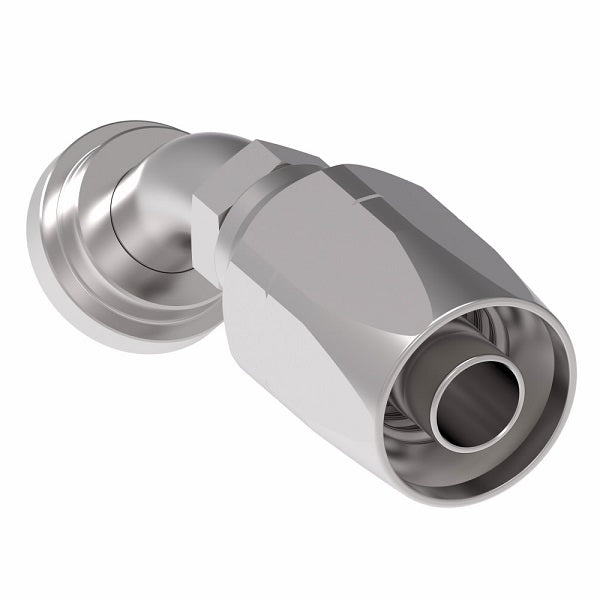

4745-12S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Code 61 Split Flange x -12 Reusable Hose End | Steel
4745-12S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Code 61 Split Flange x -12 Reusable Hose End | Steel
4745-12S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Code 61 Split Flange x -12 Reusable Hose End | Steel
4745-12S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Code 61 Split Flange x -12 Reusable Hose End | Steel

4745-12S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Code 61 Split Flange x -12 Reusable Hose End | Steel

$123.98 - $123.98
$123.98
$123.98 - $123.98
$123.98

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Code 61 Split Flange - 45° Elbow

SAE J518

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4745-12S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Code 61 Flange, 3/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
4745-12S -12 1.50" 4.34" 2.47" 0.61" 1.00"
4745-16S -16 1.75" 5.09" 3.04" 0.82" 1.12"
4745-20S -20 2.00" 5.78" 3.46" 1.05" 1.12"
