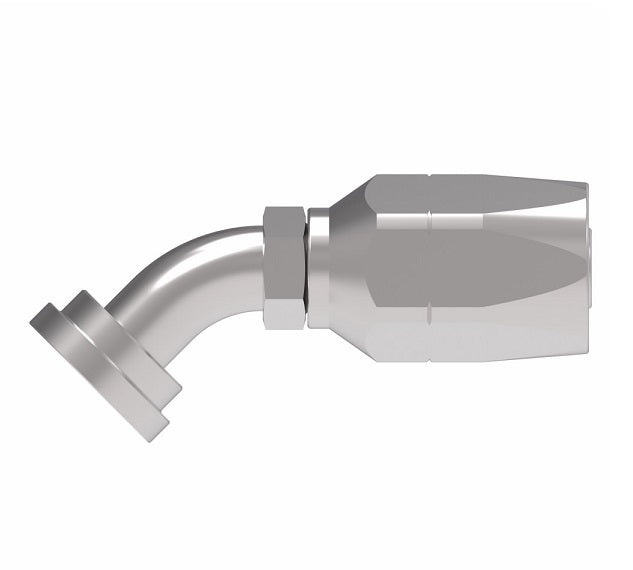

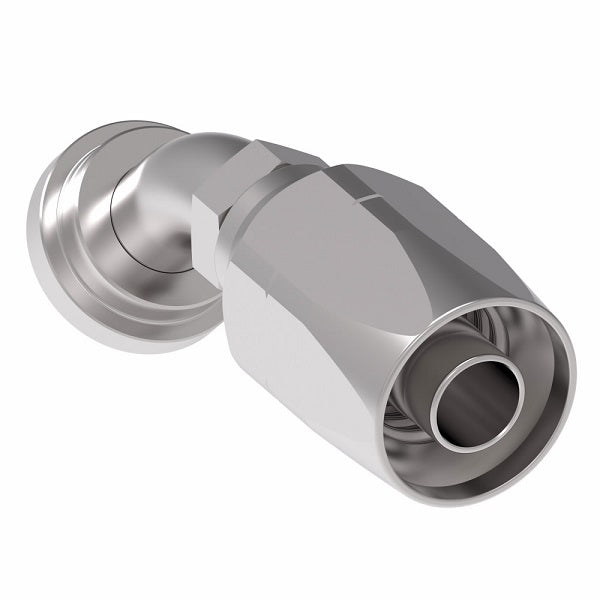

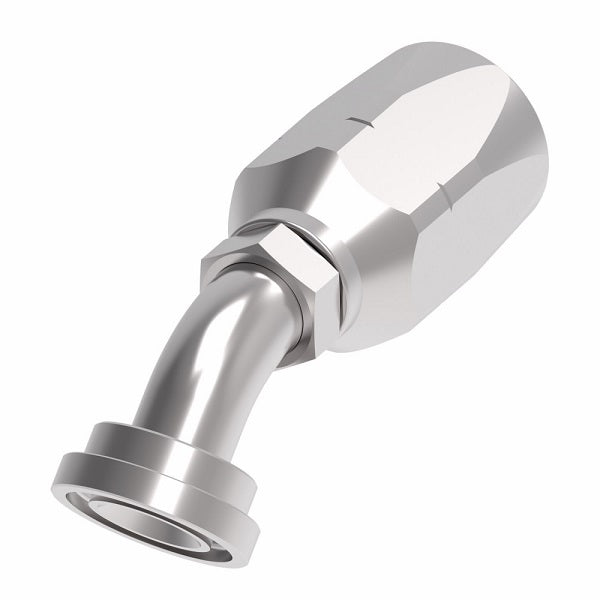

4745-16S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel

4745-16S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel | Pack of 10

$1,688.60 - $1,688.60

$1,688.60

$1,688.60 - $1,688.60

$1,688.60

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Code 61 Split Flange - 45° Elbow

SAE J518

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4745-16S Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	1in Code 61 Flange, 1in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Flange Head Diameter	A	D	EØ	H
4745-12S	-12	1.50"	4.34"	2.47"	0.61"	1.00"
4745-16S	-16	1.75"	5.09"	3.04"	0.82"	1.12"
4745-20S	-20	2.00"	5.78"	3.46"	1.05"	1.12"
