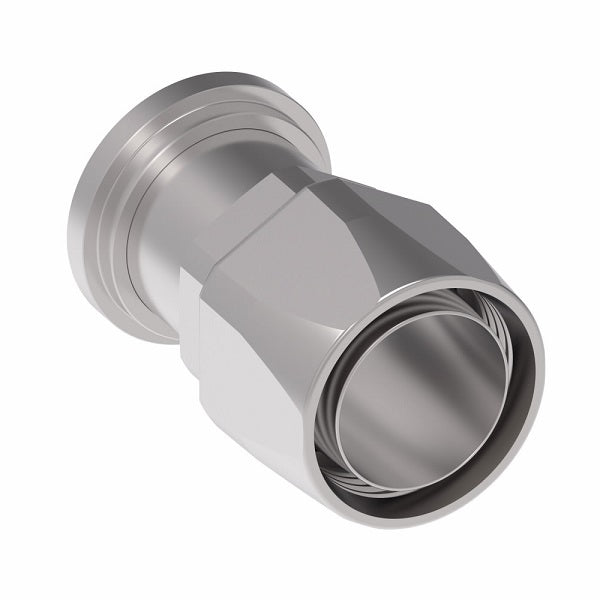

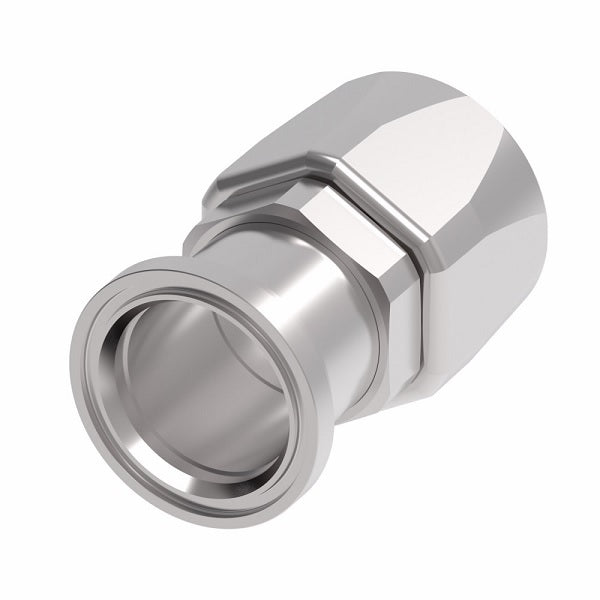

4775-20-16S Aeroquip by Danfoss | SAE Code 61 Split Flange (SAE J518) 100R5 Reusable Hose Fitting | -20 Code 61 Split Flange x -16 Reusable Hose End | Steel

Name: 4775-20-16S Aeroquip by Danfoss | SAE Code 61 Split Flange (SAE J518) 100R5 Reusable Hose Fitting | -20 Code 61 Split Flange x -16 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4775-20-16S Danfoss
Price: 80.62 USD
Availability: InStock

$80.62 - $80.62

$80.62

$80.62 - $80.62

$80.62

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4775-20-16S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Code 61 Flange, 1in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 Series \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Brass & Steel Part Number	Hose Size	Flange Head Diameter	A	D	EØ
4775-16S	-	-16	1.75"	2.77"	1.50"	0.82"
4775-20-16S	-	-16	2.00"	3.36"	2.09"	0.82"
4775-20S	-	-20	2.00"	3.58"	2.21"	1.05"
4775-20-24S	-	-24	2.00"	3.67"	2.22"	1.05"
4775-24S	-	-24	2.38"	4.02"	2.56"	1.28"
4775-32-24S	-	-24	2.81"	4.02"	2.56"	1.28"
4775-32S	-	-32	2.81"	4.92"	3.08"	1.75"
4775-40-32S	-	-32	3.31"	4.98"	3.14"	1.75"
-	39-4775-40	-40	-	5.36"	3.45"	2.21"
