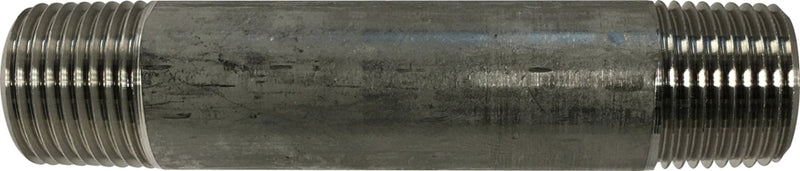

48043 (48-043) Midland Schedule 40 Welded Nipple - 3/8" Diameter x 2-1/2" Length - 304 Stainless Steel

48043 by Midland | Schedule 40 Welded Nipple | 3/8" Diameter x 2-1/2" Length | 304 Stainless Steel

Save $0.64 Save $0.64
$5.72
$5.72 - $5.72
$5.72
$5.08
$5.08 - $5.08
$5.08

Midland Industries
Schedule 40 Welded Nipple - 3/8" Diameter (3/8"-18) - 304 Stainless Steel

Suited for all types of dairy equipment piping and valves, the brewing industry, the citrus and fruit juice industry, and in food processing applications.

Also used for the dye tanks, pipelines buckets, dippers, etc. that come in contact with the lormic, acetic, and other organic acids used in the dyeing industry.

Able to withstand the corrosive action of various acids found in fruits, meats, milk, and vegetables

Inventory @ Manufacturers Warehouse: 498 Units
Specifications for Variant SKU: 48043 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPT, 3/8in Male NPT, Some Ends Match
Material(s): 304 Stainless Steel
Applicable Specs & Approvals: ASTM A312/SA312, ASTM A733, NSF/ANSI 372, NSF/ANSI 61
Features:
  • The basic alloy. Type 304 (18-8) is an austenitic steel possessing a minimum of 18% chromium and 8% nickel, combined with a maximum of 0.08% carbon. It is a nonmagnetic steel which cannot be hardened by heat treatment, but instead. must be cold worked to obtain higher tensile strengths.
  • In the marine environment, because of it slightly higher strength and wear resistance than type 316 it is also used for nuts, bolts, screws, and other fasteners. It is also used for springs, cogs, and other components where both wear and corrosion resistance is needed.
Specifications:
  • Both #304 and #316 nipples are NSF/ANSI 372 and NSF/ANSI 61 compliant.
  • Stainless steel pipe nipples are manufactured from stainless steel pipe that conforms to specification ASTM A312/SA312.
  • All stainless steel nipples conform to specification ASTM A733.
  • Threads conform to the requirements of ANSI B1.20.1.
Part Number Length Approx. Weight
(Lbs.)
48040
(48-040)		 1" (Close) 0.03
48041
(48-041)		 1-1/2" 0.06
48042
(48-042)		 2" 0.07
48043
(48-043)		 2-1/2" 0.10
48044
(48-044)		 3" 0.12
48045
(48-045)		 3-1/2" 0.15
48046
(48-046)		 4" 0.17
48047
(48-047)		 4-1/2" 0.19
48048
(48-048)		 5" 0.22
48049
(48-049)		 5-1/2" 0.23
48050
(48-050)		 6" 0.26
48051 7" 0.32
48052
(48-052)		 8" 0.34
48053
(48-053)		 9" 0.39
48054
(48-054)		 10" 0.43
48055 11" 0.50
48056
(48-056)		 12" 0.51
>
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
