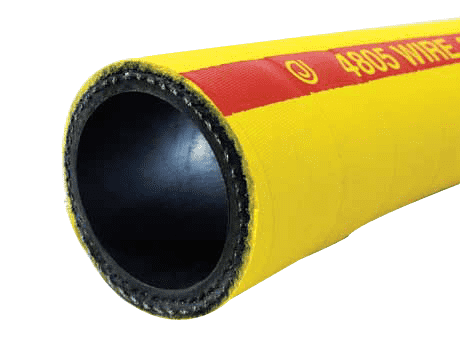

4805-0125-100 by Jason Industrial | 4805 Series | Wire Reinforced Air Hose | 600 PSI | 1-1/4" ID | 1.81" OD | Bright Yellow | NR/SBR | 100ft

4805-0125-100 by Jason Industrial | 4805 Series | Wire Reinforced Air Hose | 600 PSI | 1-1/4" ID | 1.81" OD | Bright Yellow | NR/SBR | 100ft

Save $5.82 Save $5.82
$576.49
$576.49 - $576.49
$576.49
$570.67
$570.67 - $570.67
$570.67

Jason Industrial Inc. Hose - Air Hose - 4805 Wire Reinforced Air Hose - Bright Yellow

Package Quantity: 100 FT

Specifications for Variant SKU: 4805-0125-100 Jason | 100 |
Series: 4805 Series
Hose Color(s): Yellow
Internal Diameter: 1.25in
Outer Diameter: 1.81in
Tubing Construction: Nitrile Blend
Cover Construction: SBR
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For heavy duty air supply in mining, quarries, construction, industrial air place ment, sandblasting and heavy duty equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile Blend, Smooth and Black
Reinforcement: Two Spiral Wires Cover: SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4805 WIRE AIR WP (PSI) (BAR)
Other Features:
  • Oil mist resistant tube with high working pressure
  • Bright yellow non-marking cover
  • Heavy duty cover makes this a durable hose
Part Number I.D. O.D. Reinforcement Spirals Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Uncoupled
4805-0050-050 1/2" 12.70mm 0.91" 23.11mm 2 600 PSI 41.37 BAR N/A 0.36 lb./ft. 0.54 KG/m 5.50" 140.00mm 50ft
4805-0050-100 1/2" 12.70mm 0.91" 23.11mm 2 600 PSI 41.37 BAR N/A 0.36 lb./ft. 0.54 KG/m 5.50" 140.00mm 100ft
4805-0075-050 3/4" 19.05mm 1.22" 30.99mm 2 600 PSI 41.37 BAR N/A 0.60 lb./ft. 0.98 KG/m 8.30" 210.00mm 50ft
4805-0075-100 3/4" 19.05mm 1.22" 30.99mm 2 600 PSI 41.37 BAR N/A 0.60 lb./ft. 0.98 KG/m 8.30" 210.00mm 100ft
4805-0100-050 1" 25.40mm 1.49" 37.85mm 2 600 PSI 41.37 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 50ft
4805-0100-100 1" 25.40mm 1.49" 37.85mm 2 600 PSI 41.37 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 100ft
4805-0125-050 1-1/4" 31.75mm 1.81" 45.97mm 2 600 PSI 41.37 BAR N/A 1.05 lb./ft. 1.56 KG/m 13.80" 350.00mm 50ft
4805-0125-100 1-1/4" 31.75mm 1.81" 45.97mm 2 600 PSI 41.37 BAR N/A 1.05 lb./ft. 1.56 KG/m 13.80" 350.00mm 100ft
4805-0150-050 1-1/2" 38.10mm 2.04" 51.82mm 2 600 PSI 41.37 BAR N/A 1.24 lb./ft. 1.85 KG/m 16.50" 420.00mm 50ft
4805-0150-100 1-1/2" 38.10mm 2.04" 51.82mm 2 600 PSI 41.37 BAR N/A 1.24 lb./ft. 1.85 KG/m 16.50" 420.00mm 100ft
4805-0200-050 2" 50.80mm 2.60" 66.04mm 2 600 PSI 41.37 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 50ft
4805-0200-100 2" 50.80mm 2.60" 66.04mm 2 600 PSI 41.37 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 100ft
4805-0200-200 2" 50.80mm 2.60" 66.04mm 2 600 PSI 41.37 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 200ft
4805-0250-050 2-1/2" 63.50mm 3.15" 80.01mm 2 600 PSI 41.37 BAR N/A 2.40 lb./ft. 3.57 KG/m 27.50" 700.00mm 50ft
4805-0250-100 2-1/2" 63.50mm 3.15" 80.01mm 2 600 PSI 41.37 BAR N/A 2.40 lb./ft. 3.57 KG/m 27.50" 700.00mm 100ft
4805-0300-050 3" 76.20mm 3.70" 93.98mm 2 600 PSI 41.37 BAR N/A 3.22 lb./ft. 4.79 KG/m 33.10" 840.00mm 50ft
4805-0300-100 3" 76.20mm 3.70" 93.98mm 2 600 PSI 41.37 BAR N/A 3.22 lb./ft. 4.79 KG/m 33.10" 840.00mm 100ft
4805-0400-050 4" 101.60mm 4.88" 123.95mm 2 600 PSI 41.37 BAR N/A 4.70 lb./ft. 6.99 KG/m 44.10" 1120.00mm 50ft
4805-0400-100 4" 101.60mm 4.88" 123.95mm 2 600 PSI 41.37 BAR N/A 4.70 lb./ft. 6.99 KG/m 44.10" 1120.00mm 100ft
4805-0600-050 6" 152.40mm 6.89" 175.01mm 2 600 PSI 41.37 BAR N/A 6.82 lb./ft. 10.14 KG/m 63.00" 1600.20mm 50ft
4805-0600-100 6" 152.40mm 6.89" 175.01mm 2 600 PSI 41.37 BAR N/A 6.82 lb./ft. 10.14 KG/m 63.00" 1600.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
