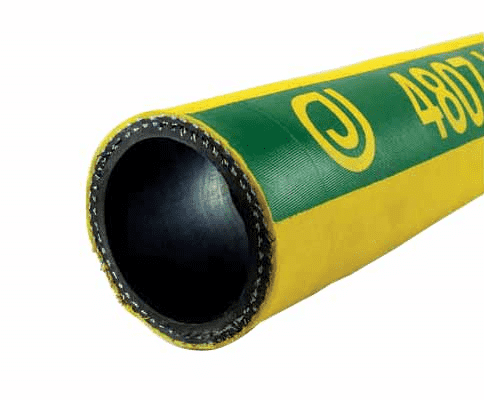

4807-0100-100 by Jason Industrial | 4807 Series | Hi-Temp Air Hose | Wire Reinforced | 600 PSI | 1" ID | 1.93" OD | Bright Yellow | Synthetic Rubber | 100ft

Save $442.07

$1,547.25

$1,547.25 - $1,547.25

$1,547.25

$1,105.18

$1,105.18 - $1,105.18

$1,105.18

Jason Industrial Inc. Hose - Air Hose - 4807 Hi-Temp Air Hose - Wire Reinforced - Bright Yellow

Package Quantity: 100 FT

Specifications for Variant SKU: 4807-0100-100 Jason \| 100 \|
Series:	4807 Series
Hose Color(s):	Yellow
Internal Diameter:	1in
Outer Diameter:	1.93in
Tubing Construction:	Synthetic Rubber
Cover Construction:	EPDM
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Application:	For heavy duty air supply where high temperature is required. For use with high-temperature compressors without an after-cooler, mining, quarries, construction, industrial air placement, sand blasting and heavy duty equipment.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Hydraulic Oil Resistant, High Heat Synthetic Rubber
Reinforcement:	Two Spiral Wires	Cover:	EPDM, Yellow, Pin-Pricked.
Temperature Range:	-40 deg. F (-40 deg. C) to +275 deg. F (+135 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4807 HIGH HEAT WIRE AIR 275 deg. F (+135 deg. C) 600 PSI/41.4 BAR. Green mylar longitudinal stripe
Hydraulic oil resistant tube Bright yellow non-marking cover High working pressure Extreme heat resistance Abrasion and ozone resistant

Part Number	I.D.		O.D.		Reinforcement Spirals	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR		lb./ft.	KG/m	in.	mm	ft
Uncoupled
4807-0075-050	3/4"	19.05mm	1.42"	36.00mm	2	600 PSI	41.37 BAR	N/A	0.60 lb./ft.	0.89 KG/m	8.30"	210.00mm	50ft
4807-0075-100	3/4"	19.05mm	1.42"	36.00mm	2	600 PSI	41.37 BAR	N/A	0.60 lb./ft.	0.89 KG/m	8.30"	210.00mm	100ft
4807-0100-050	1"	25.40mm	1.93"	49.00mm	2	600 PSI	41.37 BAR	N/A	0.80 lb./ft.	1.19 KG/m	11.00"	280.00mm	50ft
4807-0100-100	1"	25.40mm	1.93"	49.00mm	2	600 PSI	41.37 BAR	N/A	0.80 lb./ft.	1.19 KG/m	11.00"	280.00mm	100ft
4807-0200-050	2"	50.80mm	2.48"	63.00mm	2	600 PSI	41.37 BAR	N/A	1.80 lb./ft.	2.68 KG/m	22.00"	560.00mm	50ft
4807-0200-100	2"	50.80mm	2.48"	63.00mm	2	600 PSI	41.37 BAR	N/A	1.80 lb./ft.	2.68 KG/m	22.00"	560.00mm	100ft
4807-0300-050	3"	76.20mm	3.50"	89.00mm	2	600 PSI	41.37 BAR	N/A	3.22 lb./ft.	4.79 KG/m	33.10"	840.00mm	50ft
4807-0300-100	3"	76.20mm	3.50"	89.00mm	2	600 PSI	41.37 BAR	N/A	3.22 lb./ft.	4.79 KG/m	33.10"	840.00mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
