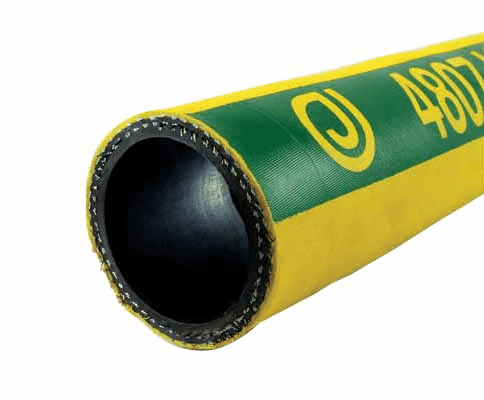

4807-0300-100 by Jason Industrial | 4807 Series | Hi-Temp Air Hose | Wire Reinforced | 600 PSI | 3" ID | 3.50" OD | Bright Yellow | Synthetic Rubber | 100ft

4807-0300-100 by Jason Industrial | 4807 Series | Hi-Temp Air Hose | Wire Reinforced | 600 PSI | 3" ID | 3.50" OD | Bright Yellow | Synthetic Rubber | 100ft

Save $916.44 Save $916.44
$3,207.55
$3,207.55 - $3,207.55
$3,207.55
$2,291.11
$2,291.11 - $2,291.11
$2,291.11

Jason Industrial Inc. Hose - Air Hose - 4807 Hi-Temp Air Hose - Wire Reinforced - Bright Yellow

Package Quantity: 100 FT

Specifications for Variant SKU: 4807-0300-100 Jason | 100 |
Series: 4807 Series
Hose Color(s): Yellow
Internal Diameter: 3in
Outer Diameter: 3.50in
Tubing Construction: Synthetic Rubber
Cover Construction: EPDM
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For heavy duty air supply where high temperature is required. For use with high-temperature compressors without an after-cooler, mining, quarries, construction, industrial air placement, sand blasting and heavy duty equipment. SAE Rating: N/A
Other Ratings: N/A Tube: Hydraulic Oil Resistant, High Heat Synthetic Rubber
Reinforcement: Two Spiral Wires Cover: EPDM, Yellow, Pin-Pricked.
Temperature Range: -40 deg. F (-40 deg. C) to +275 deg. F (+135 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4807 HIGH HEAT WIRE AIR 275 deg. F (+135 deg. C) 600 PSI/41.4 BAR. Green mylar longitudinal stripe
Other Features:
  • Hydraulic oil resistant tube
  • Bright yellow non-marking cover
  • High working pressure
  • Extreme heat resistance
  • Abrasion and ozone resistant
Part Number I.D. O.D. Reinforcement Spirals Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Uncoupled
4807-0075-050 3/4" 19.05mm 1.42" 36.00mm 2 600 PSI 41.37 BAR N/A 0.60 lb./ft. 0.89 KG/m 8.30" 210.00mm 50ft
4807-0075-100 3/4" 19.05mm 1.42" 36.00mm 2 600 PSI 41.37 BAR N/A 0.60 lb./ft. 0.89 KG/m 8.30" 210.00mm 100ft
4807-0100-050 1" 25.40mm 1.93" 49.00mm 2 600 PSI 41.37 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 50ft
4807-0100-100 1" 25.40mm 1.93" 49.00mm 2 600 PSI 41.37 BAR N/A 0.80 lb./ft. 1.19 KG/m 11.00" 280.00mm 100ft
4807-0200-050 2" 50.80mm 2.48" 63.00mm 2 600 PSI 41.37 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 50ft
4807-0200-100 2" 50.80mm 2.48" 63.00mm 2 600 PSI 41.37 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 100ft
4807-0300-050 3" 76.20mm 3.50" 89.00mm 2 600 PSI 41.37 BAR N/A 3.22 lb./ft. 4.79 KG/m 33.10" 840.00mm 50ft
4807-0300-100 3" 76.20mm 3.50" 89.00mm 2 600 PSI 41.37 BAR N/A 3.22 lb./ft. 4.79 KG/m 33.10" 840.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
