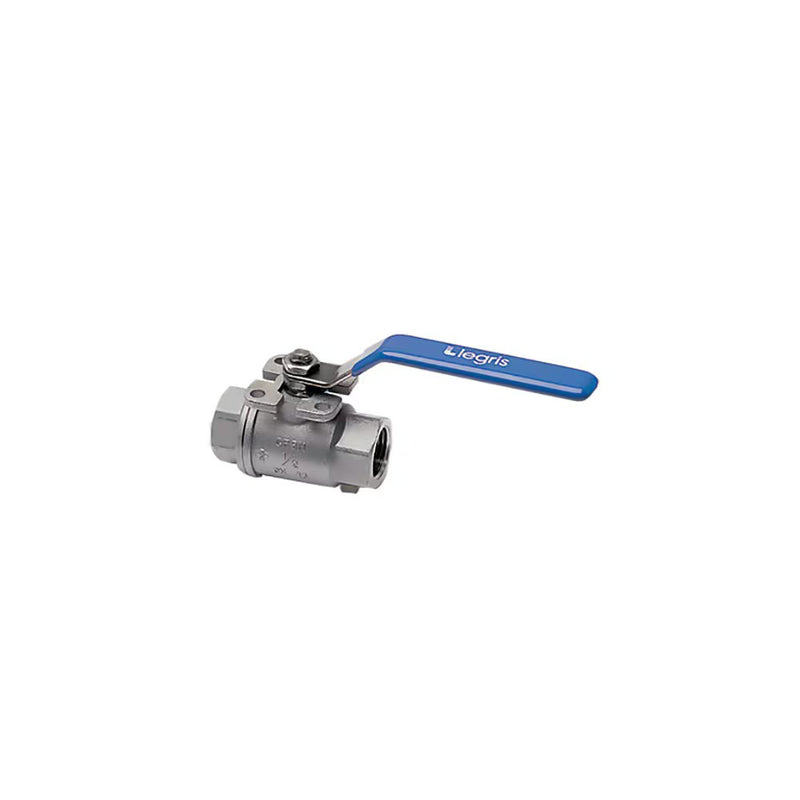

4812 10 17 by Parker | Legris In-Line Ball Valve w/ Fixing Plate | 3/8" Female BSPP Thread | Straight | 316L Stainless Steel

4812 10 17 by Parker | Legris In-Line Ball Valve w/ Fixing Plate | 3/8" Female BSPP Thread | Straight | 316L Stainless Steel

Save $96.05 Save $96.05
$240.12
$240.12 - $240.12
$240.12
$144.07
$144.07 - $144.07
$144.07

by Parker Hannifin
Stainless Steel Series:4812 2/2 In-Line Ball Valve with Fixing Plate, Female BSPP Thread
Specifications for Variant SKU: 4812 10 17 Parker
Series: 4812 Series
Shape (Orientation): Straight
Material(s): 316L Stainless Steel, Nickel-Plated Brass
Seal Material(s): PTFE
Special Properties: Environmental Resistance, Pressure Resistance, Temperature Resistance
Technical Characteristics:
  • Compatible Fluids: All fluids
  • Working Pressure: 0 to 65 bar
  • Working Temperature: -20°C to +150°C
Advantages:
  • Chemical compatibility
  • High temperature operation: up to +150°C
  • 3 straight versions:
      • - Compact type cannot be disassembled
      - 3-piece can be disassembled
      - Light series for more compactness
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465)
  • Stem seal: PTFE
  • Seat seals: PTFE
  • Lever: Nickel-plated brass (0465) or 430 stainless steel (4832-4812-4810)
  • Stem: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465)
  • Wear-compensation seal: 2 PTFE seals (0465)
    1 FKM seal (4832-4812-4810)
  • Locking nut and Locking screw: Zinc plated steel
  • Ball: 316L stainless steel (4832-4812-4810) or 303 stainless steel (0465)
Part Number Diameter Nominal (DN) C NP E G H L M T Kg
4812 10 13 10 mm 1/4" 140 mm 10 mm 36 mm 50 mm 55 mm 110 mm 5.5 mm .263 Kg
4812 10 17 10 mm 3/8" 140 mm 11 mm 36 mm 50 mm 55 mm 110 mm 5.5 mm .254 Kg
4812 15 21 15 mm 1/2" 140 mm 15 mm 36 mm 53 mm 66 mm 110 mm 5.5 mm .336 Kg
4812 20 27 20 mm 3/4" 105 mm 16 mm 42 mm 67 mm 79 mm 130 mm 5.5 mm .574 Kg
4812 25 34 25 mm 1" 105 mm 19 mm 42 mm 79 mm 93 mm 175 mm 5.5 mm 1.010 Kg
4812 32 42* 32 mm 1-1/4" 64 mm 21 mm 42 mm 83 mm 100 mm 175 mm 5.5 mm 1.337 Kg
4812 40 49* 40 mm 1-1/2" 64 mm 21 mm 50 mm 100 mm 110 mm 250 mm 6.5 mm 2.161 Kg

*Models with EC marking
Threads conformed to ISO 7/1
