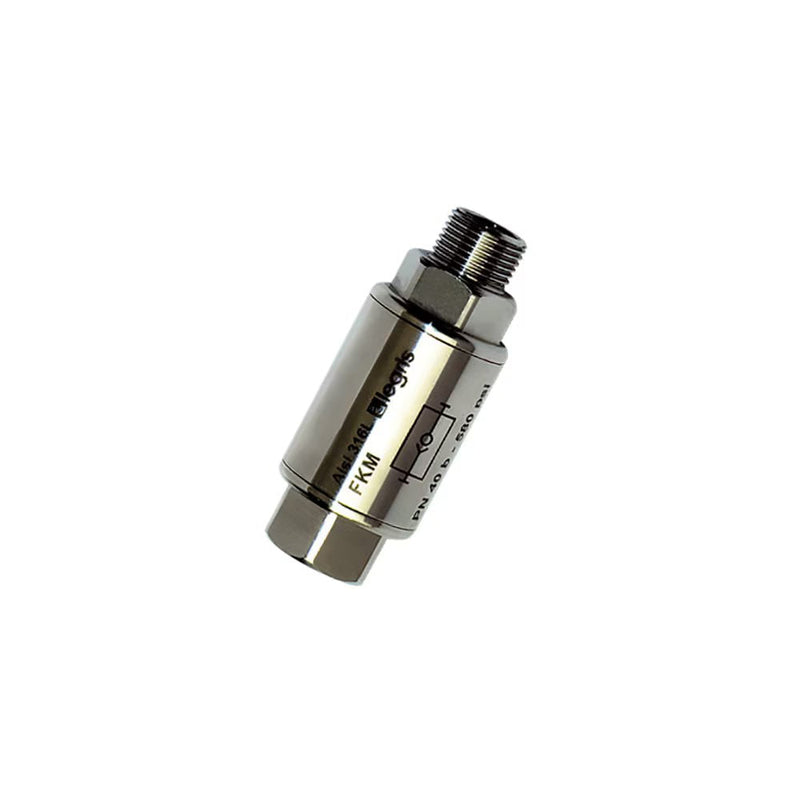

4892 21 21 by Parker | Legris Non-Return Valve | 1/2" Female/Male BSPP Thread | 79 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $20.92

$287.56

$287.56 - $287.56

$287.56

$266.64

$266.64 - $266.64

$266.64

by Parker Hannifin
Stainless Steel Non-Return Valves:4892 Non-Return Valve, Supply, Female BSPP Thread/Exhaust, Male BSPP Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 4892 21 21 Parker \| 2 \|
Series:	4892 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel, 302 Stainless Steel
Seal Material(s):	FKM
Special Properties:	Corrosion Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: .5 to 40 bar Working Temperature: -20°C to +180°C
Advantages:	Mechanical robustness and reduced dimensions Suitable for use with many chemicals or in corrosive environments Flow direction symbol protects against incorrect installation Smooth external surfaces contribute to equipment cleanliness
Regulations:	RoHS PED REACH
Component Materials:	Body: 316L Stainless Steel Seal: FKM Poppet: 316L Stainless Steel Spring: 302 Stainless Steel


Part Number	Diameter Nominal (DN)	C	F	G	L	Kg
4892 10 10	10 mm	1/8"	17 mm	22 mm	56 mm	.090 Kg
4892 13 13	10 mm	1/4"	17 mm	22 mm	58 mm	.082 Kg
4892 17 17	15 mm	3/8"	22 mm	30 mm	75 mm	.191 Kg
4892 21 21	15 mm	1/2"	24 mm	30 mm	79 mm	.210 Kg
4892 27 27	20 mm	3/4"	32 mm	42 mm	84 mm	.313 Kg
4892 34 34	25 mm	1"	38 mm	42 mm	102 mm	.514 Kg
