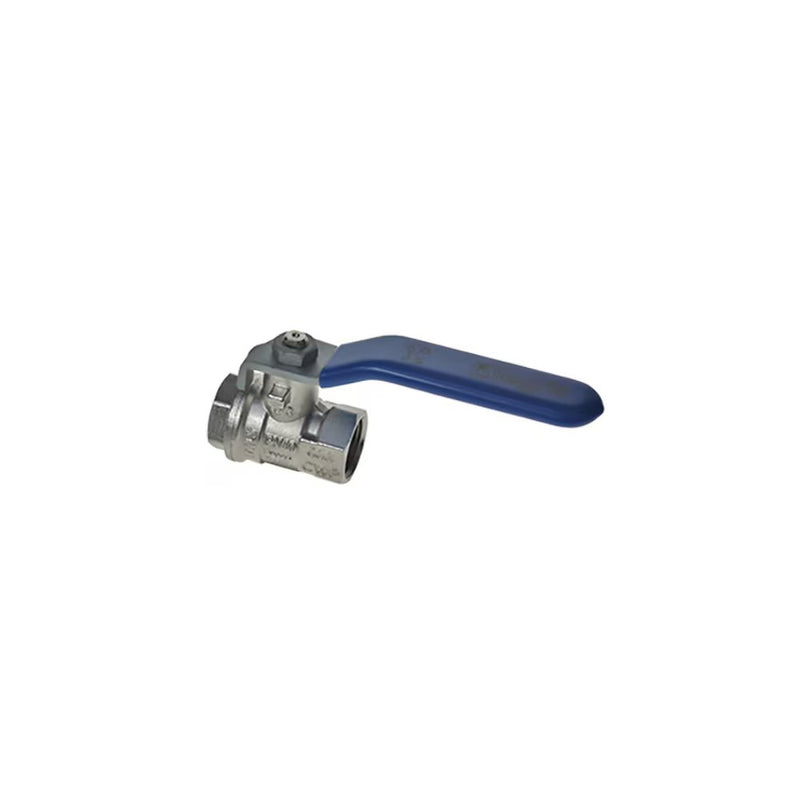

4902 50 48 by Parker | Standard In-Line Ball Valve | 2" Female BSPP Thread | 66 mm Hex | Straight | Nickel-Plated Brass | Pack of 2

Save $2.91

$160.46

$160.46 - $160.46

$160.46

$157.55

$157.55 - $157.55

$157.55

by Parker Hannifin
Standard Series:4902 2/2 Standard In-Line Ball Valve, Female BSPP Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 4902 50 48 Parker \| 2 \|
Series:	4902 Series
Shape (Orientation):	Straight
Material(s):	Steel, Nickel-Plated Brass
Seal Material(s):	PTFE
Special Properties:	Silicone Free, Corrosion Resistance

Technical Characteristics:	Model: Standard and Lockable Series Compatible Fluids: Compressed air Working Pressure: 0 to 40 bar up to 2" 0 to 30 bar up to 2" expected BVG4P-LOCK and BVG4-LOCK: 0 to 14 bar Working Temperature: -20°C to +170°C excepted BVG3P-LOCK: -10°C to +100°C
Advantages:	Long or butterfly handle Full fluid flow A lockable version for safety in use Corrosion resistance thanks to chemical nickel plating
Regulations:	PED RoHS REACH
Component Materials:	Locking System: Treated Steel Stem seal: FPM o-rings Seat seals: PTFE Long Lever: Geomet plated steel Compact Series Lever: Technical Polymer Butterfly Lever: Aluminum Locking nut and Locking screw: Zinc plated steel Stem: Nickel-Plated Brass Body: Nickel plated or chromium-plated shot blasted brass Ball: Chromium-plated brass


Part Number	Diameter Nominal (DN)	C	E	F	H	L	M	PN	Kg
4902 10 13	8 mm	1/4"	9 mm	17 mm	38 mm	39 mm	82 mm	40 mm	.131 Kg
4902 10 17	10 mm	3/8"	9 mm	20 mm	38 mm	39 mm	82 mm	40 mm	.117 Kg
4902 15 21	15 mm	1/2"	11 mm	25 mm	43 mm	50 mm	100 mm	40 mm	.204 Kg
4902 20 27	20 mm	3/4"	12 mm	31 mm	50 mm	54 mm	120 mm	40 mm	.329 Kg
4902 25 34	25 mm	1"	14 mm	38 mm	54 mm	67 mm	120 mm	40 mm	.468 Kg
4902 32 42*	32 mm	1-1/4"	15 mm	48 mm	73 mm	77 mm	158 mm	30 mm	.770 Kg
4902 40 49*	40 mm	1-1/2"	17 mm	54 mm	79 mm	90 mm	158 mm	30 mm	1.040 Kg
4902 50 48*	50 mm	2"	19 mm	66 mm	86 mm	106 mm	158 mm	30 mm	1.760 Kg
4902 80 46*	80 mm	3"	25 mm	99 mm	140 mm	157 mm	255 mm	30 mm	5.840 Kg

*Models with EC marking
Model from 2 1/2”: double stem seal in FPM
Working temperature: -20°C to +170°C
