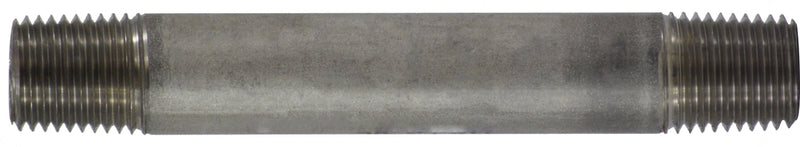

49020 by Midland | Schedule 40 Welded Nipple | 1/4" Diameter x 7/8" Length (Close) | 316 Stainless Steel

Save $0.68 Save $0.68
Original price $2.62
Original price $2.62 - Original price $2.62
Original price $2.62
Current price $1.94
$1.94 - $1.94
Current price $1.94

Midland Industries
Schedule 40 Welded Nipple - 1/4" Diameter (1/4"-18) - 316 Stainless Steel

Can withstand corrosive attack by sodium and calcium brines, hypochlorite solutions, phosphoric acid; and the sulfite liquors and sulfurous acids used in the paper pulp industry.

For industrial equipment that handles the corrosive process chemicals used to produce inks, rayons, photographic chemicals, paper, textiles, bleaches, and rubber.

Type 316 is also used extensively for surgical implants within the hostile environment of the body.

Type 316 is the main stainless used in the marine environment, with the exception of fasteners and other items.

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 1385 Units

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 49020 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s): 316 Stainless Steel
Applicable Specs & Approvals: ASTM A733, ASTM A312, ASME B1.20.1, NSF/ANSI 372, NSF/ANSI 61
Features:
  • For severe environments. Of course, there are many industrial processes that require a higher level of resistance to corrosion than Type 304 can offer. For these applications, Type 316 is the answer.
  • In type 316, the nickel content is increased slightly. What distinguishes Type 316 from Type 304 is the addition of molybdenum up to a maximum of 3%.
  • Molybdenum increases the corrosion resistance of this chromium-nickel alloy to withstand attack by many industrial chemicals and solvents, and, in particular, inhibits pitting caused by chlorides. As such, molybdenum is one of the single most useful alloying additives in the fight against corrosion.
Specifications:
  • Both #304 and #316 nipples are NSF/ANSI 372 and NSF/ANSI 61 compliant.
  • Stainless steel pipe nipples are manufactured from stainless steel pipe that conforms to specification ASTM A312/SA312.
  • All stainless steel nipples conform to specification ASTM A733.
  • Threads conform to the requirements of ANSI B1.20.1.
Part Number Length Approx. Weight
(Lbs.)
49020
(49-020)
Close (7/8") 0.02
49021
(49-021)
1-1/2" 0.04
49022
(49-022)
2" 0.04
49023
(49-023)
2-1/2" 0.07
49024
(49-024)
3" 0.09
49025
(49-025)
3-1/2" 0.11
49026
(49-026)
4" 0.13
49027
(49-027)
4-1/2" 0.14
49028
(49-028)
5" 0.16
49029
(49-029)
5-1/2" 0.18
49030
(49-030)
6" 0.19
49032
(49-032)
8" 0.25
49033
(49-033)
9" 0.31
49034
(49-034)
10" 0.35
49035
(49-035)
11" 0.40
49036
(49-036)
12" 0.44
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
