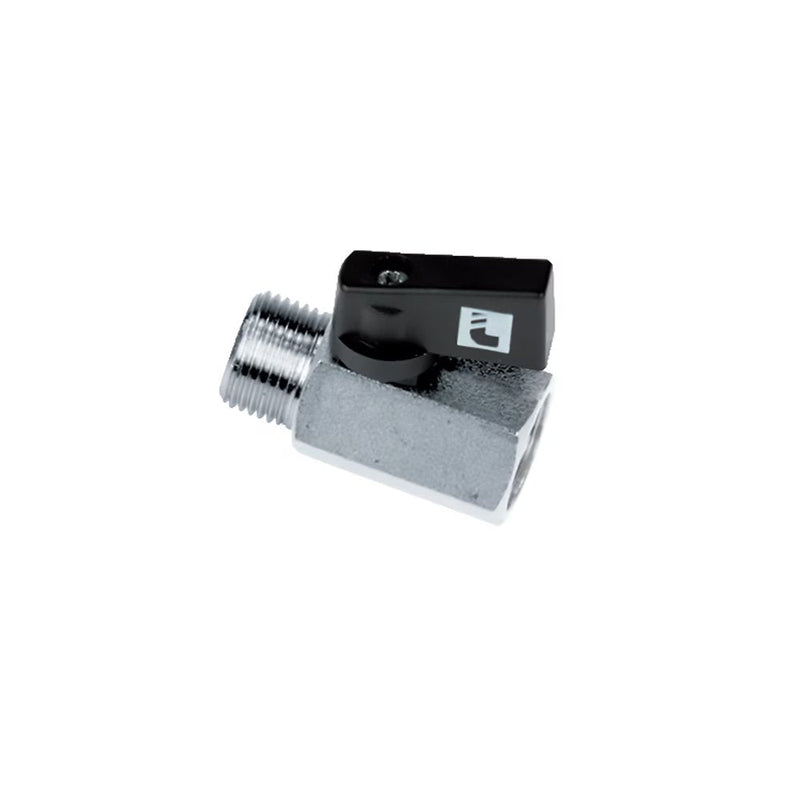

4991 00 21 by Parker | Standard Compact In-Line Ball Valve | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 25 mm Hex | 49 mm Length | Straight | Chromium Brass | Pack of 5

4991 00 21 by Parker | Standard Compact In-Line Ball Valve | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 25 mm Hex | 49 mm Length | Straight | Chromium Brass | Pack of 5

Save $86.62 Save $86.62
$216.55
$216.55 - $216.55
$216.55
$129.93
$129.93 - $129.93
$129.93

by Parker Hannifin
Standard Series:4991 2/2 Standard Compact In-Line Ball Valve, Male/Female BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 4991 00 21 Parker | 5 |
Series: 4991 Series
Shape (Orientation): Straight
Material(s): Chromium Brass, Nickel-Plated Brass, Plastic
Seal Material(s): PTFE
Special Properties: Silicone Free, Corrosion Resistance
Technical Characteristics:
  • Model: Compact Series
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 30 bar
  • Working Temperature: -10°C to +90°C
Advantages:
  • Long or butterfly handle
  • Full fluid flow
  • A lockable version for safety in use
  • Corrosion resistance thanks to chemical nickel plating
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Locking System: Treated Steel
  • Stem seal: FPM o-rings
  • Seat seals: PTFE
  • Long Lever: Geomet plated steel
  • Compact Series Lever: Technical Polymer
  • Butterfly Lever: Aluminum
  • Locking nut and Locking screw: Zinc plated steel
  • Stem: Nickel-Plated Brass
  • Body: Nickel plated or chromium-plated shot blasted brass
  • Ball: Chromium-plated brass
Part Number Diameter Nominal (DN) C E E1 F H L L1 M Kg
4991 00 13 8 mm 1/4" 11 mm 11 mm 21 mm 30 mm 41.5 mm 11 mm 24 mm .082 Kg
4991 00 21 10 mm 1/2" 13 mm 13 mm 25 mm 32 mm 49 mm 12.5 mm 24 mm .134 Kg
