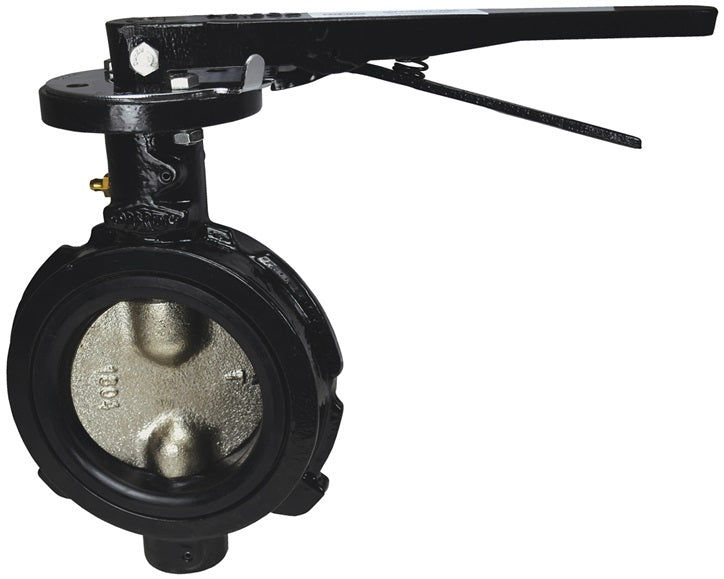

4BF416DITF-FKM by Dixon Valve | Boss® LPS Butterfly Valve | 4" Size | Valve with FKM Seat | Ductile Iron

4BF416DITF-FKM by Dixon Valve | Boss® LPS Butterfly Valve | 4" Size | Valve with FKM Seat | Ductile Iron

Save $40.41 Save $40.41
$363.68
$363.68 - $363.68
$363.68
$323.27
$323.27 - $323.27
$323.27

Dixon Valve
Boss® | LPS Butterfly Valve

Used in the Low-pressure transfer of water, acids, chemicals, slurries, and other liquids.

Designed for all low-pressure hydraulic fracturing applications.
Specifications for Variant SKU: 4BF416DITF-FKM Dixon
Brand: Boss
Shape (Orientation): Straight
Features:
  • Locator notches around the outer edge of the body allow the valve to easily line up at center.
  • Actuator mounting flange outfitted with both industry standard and ISO bolt circle diameters.
  • Thicker stems deliver a more durable and reliable performance.
  • Grease zerk added to body neck for reliable performance.
  • 10-position throttling handle for controlled accuracy.
  • For use between lightweight flanges: 125 lb., 150 lb., or butterfly valve flange.
  • Valve is rebuildable; contact Dixon for replacement parts.
Materials:
  • Body: ductile iron.
  • Disc: nickel-plated ductile iron.
  • Seat: nitrile rubber or FKM.
  • Bushings: PTFE.
  • O-rings: nitrile rubber.
  • Stems: 416 stainless steel.
  • Retaining pins: stainless steel.
  • Handle: malleable iron.
Specifications:
  • Maximum working pressure:
    • 4" and 5" - 200 PSI
    • 8" - 175 PSI
  • Temperature range:
    • Nitrile Rubber Seat: -20°F to 200°F (-28°C to 93°C)
    • FKM Seat: 0°F to 200°F (-17°C to 93°C)
Part Number Size Description
4BF416DITF-CNBR 4" Valve with Nitrile Rubber Seat
4BF416DITF-FKM 4" Valve with FKM Seat
5BF416DITF-NBR 5" Valve with Nitrile Rubber Seat
8BF416DITF-NBR 8" Valve with Nitrile Rubber Seat
