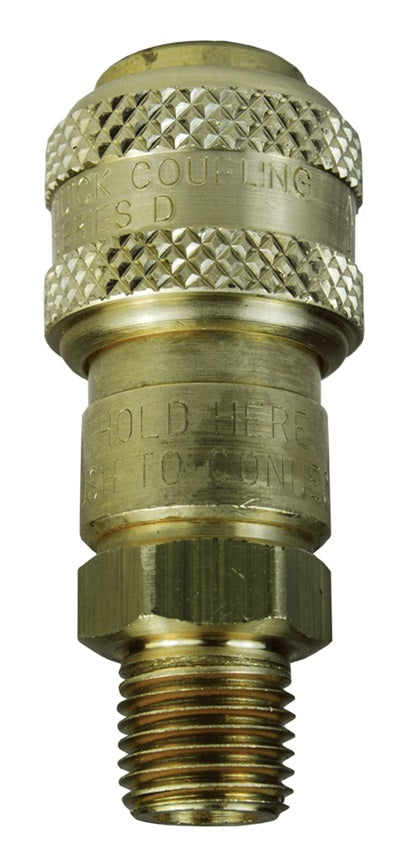

4DM3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | D-Series | 3/8" Male NPTF x 1/2" Automatic Industrial Interchange | Socket | Nitrile Seal | Brass

4DM3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | D-Series | 3/8" Male NPTF x 1/2" Automatic Industrial Interchange | Socket | Nitrile Seal | Brass

Save $2.14 Save $2.14
$19.24
$19.24 - $19.24
$19.24
$17.10
$17.10 - $17.10
$17.10

Dixon Valve & Coupling
Pneumatic Coupling: D-Series Automatic Industrial Interchange Coupler (Male Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4DM3-B Dixon
Series: D-Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 3/8in Male NPTF
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Foster 3, 4, 5 and 6 Series
  • Parker 30 - Series Automatic Interchange
  • Hansen 3000, 4000, 5000 and 6000
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Nitrile Rubber) seals are standard.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel tubular valve.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
D-Series | Automatic Industrial Interchange Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Material Length Max.
OD		 Hex Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
2DM1-B Socket/Female 1/4" 1/8" - 27 Male NPTF Brass 2.21"
(56.1mm)		 0.98"
(24.9mm)		 11/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 16,000 PSI
(1,100 bar)		 16,000 PSI
(1,100 bar)
2DM2-B Socket/Female 1/4" 1/4" - 18 Male NPTF Brass 2.34"
(59.4mm)		 0.98"
(24.9mm)		 11/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 16,000 PSI
(1,100 bar)		 16,000 PSI
(1,100 bar)
2DM2-S Socket/Female 1/4" 1/4" - 18 Male NPTF 303 Stainless 2.34"
(59.4mm)		 0.98"
(24.9mm)		 11/16" 303 S.S. Coupler & 303 S.S. Steel Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Steel Plug: 26,000 PSI
(1,795 bar)
2DBM2-B Socket/Female 1/4" 1/4" - 19 Male BSPT Brass 2.34"
(59.4mm)		 0.98"
(24.9mm)		 11/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 16,000 PSI
(1,100 bar)		 16,000 PSI
(1,100 bar)
2DM3-B Socket/Female 1/4" 3/8" - 18 Male NPTF Brass 2.36"
(59.9mm)		 0.98"
(24.9mm)		 11/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 16,000 PSI
(1,100 bar)		 16,000 PSI
(1,100 bar)
2DM3-S Socket/Female 1/4" 3/8" - 18 Male NPTF 303 Stainless 2.36"
(59.9mm)		 0.98"
(24.9mm)		 11/16" 303 S.S. Coupler & 303 S.S. Steel Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Steel Plug: 26,000 PSI
(1,795 bar)
2DBM3-B Socket/Female 1/4" 3/8" - 19 Male BSPT Brass 2.36"
(59.9mm)		 0.98"
(24.9mm)		 11/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 16,000 PSI
(1,100 bar)		 16,000 PSI
(1,100 bar)
3DM2-B Socket/Female 3/8" 1/4" - 18 Male NPTF Brass 2.59"
(65.8mm)		 1.18"
(30.0mm)		 7/8" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 14,500 PSI
(1,000 bar)		 15,500 PSI
(1,070 bar)
3DM3-B Socket/Female 3/8" 3/8" - 18 Male NPTF Brass 2.73"
(69.3mm)		 1.18"
(30.0mm)		 7/8" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 14,500 PSI
(1,000 bar)		 15,500 PSI
(1,070 bar)
3DM3-S Socket/Female 3/8" 3/8" - 18 Male NPTF 303 Stainless 2.73"
(69.3mm)		 1.18"
(30.0mm)		 7/8" 303 S.S. Coupler & 303 S.S. Steel Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Steel Plug: 25,500 PSI
(1,760 bar)
3DBM3-B Socket/Female 3/8" 3/8" - 19 Male BSPT Brass 2.73"
(69.3mm)		 1.18"
(30.0mm)		 7/8" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 14,500 PSI
(1,000 bar)		 15,500 PSI
(1,070 bar)
3DM4-B Socket/Female 3/8" 1/2" - 14 Male NPTF Brass 2.94"
(74.7mm)		 1.18"
(30.0mm)		 7/8" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 14,500 PSI
(1,000 bar)		 15,500 PSI
(1,070 bar)
4DM3-B Socket/Female 1/2" 3/8" - 18 Male NPTF Brass 3.13"
(79.5mm)		 1.34"
(34.0mm)		 1-1/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 10,500 PSI
(1,000 bar)		 14,000 PSI
(965 bar)
4DM4-B Socket/Female 1/2" 1/2" - 14 Male NPTF Brass 3.17"
(80.5mm)		 1.34"
(34.0mm)		 1-1/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 10,500 PSI
(1,000 bar)		 14,000 PSI
(965 bar)
4DM4-S Socket/Female 1/2" 1/2" - 14 Male NPTF 303 Stainless 3.17"
(80.5mm)		 1.34"
(34.0mm)		 1-1/16" 303 S.S. Coupler & 303 S.S. Steel Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Steel Plug: 20,500 PSI
(1,415 bar)
4DBM4-B Socket/Female 1/2" 1/2" - 14 Male BSPT Brass 3.17"
(80.5mm)		 1.34"
(34.0mm)		 1-1/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 10,500 PSI
(1,000 bar)		 14,000 PSI
(965 bar)
4DM6-B Socket/Female 1/2" 3/4" - 14 Male NPTF Brass 3.23"
(82.0mm)		 1.34"
(34.0mm)		 1-1/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 10,500 PSI
(1,000 bar)		 14,000 PSI
(965 bar)
6DM4-B Socket/Female 3/4" 1/2" - 14 Male NPTF Brass 2.95"
(74.9mm)		 1.90"
(48.3mm)		 1-3/16" 500 PSI
(35 bar)		 - 10,000 PSI
(670 bar)		 -
6DM6-B Socket/Female 3/4" 3/4" - 14 Male NPTF Brass 2.95"
(74.9mm)		 1.90"
(48.3mm)		 1-5/16" 500 PSI
(35 bar)		 - 10,000 PSI
(670 bar)		 -
6DM8-B Socket/Female 3/4" 1" - 11-1/2 Male NPTF Brass 3.12"
(79.2mm)		 1.90"
(48.3mm)		 1-9/16" 500 PSI
(35 bar)		 - 10,000 PSI
(670 bar)		 -
DF-Series | Industrial Interchange Plug (Male Threads)
Part Number Coupling Type Body Size Thread Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
D2M1 Plug/Male 1/4" 1/8" - 27 Male NPTF Steel 1.57"
(39.9mm)		 0.58"
(14.7mm)		 1/2"
  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
  • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
    D2M1-B Plug/Male 1/4" 1/8" - 27 Male NPTF Brass 1.57"
    (39.9mm)    		 0.58"
    (14.7mm)    		 1/2"
    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
    • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar)
      D2M1-S Plug/Male 1/4" 1/8" - 27 Male NPTF 303 Stainless 1.57"
      (39.9mm)      		 0.58"
      (14.7mm)      		 1/2"
      • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
      • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
        D2M2 Plug/Male 1/4" 1/4" - 18 Male NPTF Steel 1.69"
        (42.9mm)        		 0.65"
        (16.5mm)        		 9/16"
        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
        • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
        • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
          D2M2-B Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 1.69"
          (42.9mm)          		 0.65"
          (16.5mm)          		 9/16"
          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
          • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar)
            D2M2-S Plug/Male 1/4" 1/4" - 18 Male NPTF 303 Stainless 1.69"
            (42.9mm)            		 0.65"
            (16.5mm)            		 9/16"
            • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
            • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
              D2BM2 Plug/Male 1/4" 1/4" - 19 Male BSPT Steel 1.69"
              (42.98mm)              		 0.65"
              (16.5mm)              		 9/16"
              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
              • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
              • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
                D2M3 Plug/Male 1/4" 3/8" - 18 Male NPTF Steel 1.75"
                (44.5mm)                		 0.87"
                (22.1mm)                		 3/4"
                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
                • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
                  D2M3-B Plug/Male 1/4" 3/8" - 18 Male NPTF Brass 1.75"
                  (44.5mm)                  		 0.87"
                  (22.1mm)                  		 3/4"
                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
                  • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar)
                    D2M3-S Plug/Male 1/4" 3/8" - 18 Male NPTF 303 Stainless 1.75"
                    (44.5mm)                    		 0.87"
                    (22.1mm)                    		 3/4"
                    • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
                    • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
                      D2BM3 Plug/Male 1/4" 3/8" - 19 Male BSPT Steel 1.75"
                      (44.5mm)                      		 0.87"
                      (22.1mm)                      		 3/4"
                      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
                      • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                      • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
                        D3M2 Plug/Male 3/8" 1/4" - 18 Male NPTF Steel 1.81"
                        (46.0mm)                        		 0.79"
                        (20.1mm)                        		 11/16"
                        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                        • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                        • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                          D3M3 Plug/Male 3/8" 3/8" - 18 Male NPTF Steel 1.87"
                          (47.5mm)                          		 0.87"
                          (22.1mm)                          		 3/4"
                          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                          • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                          • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                            D3M3-B Plug/Male 3/8" 3/8" - 18 Male NPTF Brass 1.87"
                            (47.5mm)                            		 0.87"
                            (22.1mm)                            		 3/4"
                            • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,500 PSI (1,000 bar)
                            • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 10,000 PSI (690 bar)
                              D3M3-S Plug/Male 3/8" 3/8" - 18 Male NPTF 303 Stainless 1.87"
                              (47.5mm)                              		 0.87"
                              (22.1mm)                              		 3/4"
                              • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 25,500 PSI (1,760 bar)
                              • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 20,500 PSI (1,415 bar)
                                D3BM3 Plug/Male 3/8" 3/8" - 19 Male BSPT Steel 1.87"
                                (47.5mm)                                		 0.87"
                                (22.1mm)                                		 11/16"
                                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                                • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                                  D3M4 Plug/Male 3/8" 1/2" - 14 Male NPTF Steel 2.03"
                                  (51.6mm)                                  		 1.01"
                                  (25.7mm)                                  		 7/8"
                                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                  • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                                  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                                    D4M2 Plug/Male 1/2" 1/4" - 18 Male NPTF Steel 2.13"
                                    (54.1mm)                                    		 0.75"
                                    (19.1mm)                                    		 11/16"
                                    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                    • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                      D4M3 Plug/Male 1/2" 3/8" - 18 Male NPTF Steel 2.19"
                                      (55.6)                                      		 0.87"
                                      (22.1)                                      		 3/4"
                                      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                      • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                        D4M4 Plug/Male 1/2" 1/2" - 14 Male NPTF Steel 2.34"
                                        (59.4mm)                                        		 1.01"
                                        (25.7mm)                                        		 7/8"
                                        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                        • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                          D4M4-B Plug/Male 1/2" 1/2" - 14 Male NPTF Brass 2.34"
                                          (59.4mm)                                          		 1.01"
                                          (25.7mm)                                          		 7/8"
                                          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,500 PSI (725 bar)
                                            D4M4-S Plug/Male 1/2" 1/2" - 14 Male NPTF 303 Stainless 2.34"
                                            (59.4mm)                                            		 1.01"
                                            (25.7mm)                                            		 7/8"
                                            • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 20,500 PSI (1,415 bar)
                                            • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,000 PSI (1,035 bar)
                                              D4BM4 Plug/Male 1/2" 1/2" - 14 Male BSPT Steel 2.34"
                                              (59.4mm)                                              		 1.01"
                                              (25.7mm)                                              		 7/8"
                                              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                              • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                                D4M6 Plug/Male 1/2" 3/4" - 14 Male NPTF Steel 2.50"
                                                (63.5mm)                                                		 1.23"
                                                (31.2mm)                                                		 1-1/16"
                                                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                                • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                                  D6M4 Plug/Male 3/4" 1/2" - 14 Male NPTF Steel 2.22"
                                                  (60.5mm)                                                  		 1.52"
                                                  (38.6mm)                                                  		 1"
                                                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                    D6M6 Plug/Male 3/4" 3/4" - 14 Male NPTF Steel 2.38"
                                                    (60.5mm)                                                    		 1.52"
                                                    (38.6mm)                                                    		 1-5/16"
                                                    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                      D6M8 Plug/Male 3/4" 1" - 11-1/2 Male NPTF Steel 2.56"
                                                      (65.0mm)                                                      		 1.80"
                                                      (45.7mm)                                                      		 1-9/16"
                                                      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                        Dixon Valve & Coupling

                                                        Dixon Valve & Coupling

                                                        Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

                                                        Shop Parts by Dixon Valve & Coupling
