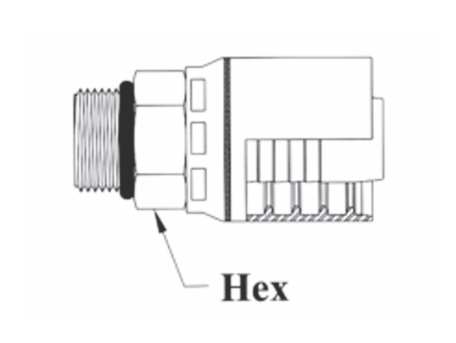

4GC11-12x12 Couplamatic Grip Crimp 4GC Series Coupling - ORB - Male Solid - 3/4" Hose ID - 1-1/16x12 Thread Size

4GC11-12x12 by Couplamatic | Grip Crimp 4GC Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread Size ORB Male Solid | Straight | Trivalent Zinc Plating

Save $8.41 Save $8.41
$21.02
$21.02 - $21.02
$21.02
$12.61
$12.61 - $12.61
$12.61

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - ORB - Male Solid
Specifications for Variant SKU: 4GC11-12x12 Couplamatic
Series: 4GC Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Boss, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series
4GC Series — 100R12 No-Skive

4GC11 Grip Crimp 4GC Series Coupling — ORB, Male Solid, Straight

4GC11 is the ORB, Male Solid, Straight configuration of the Grip Crimp 4GC Series, terminating SAE 100R12 four spiral hose.

1

What are the main product features?
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • No skive required — terminates spiral hose without stripping the cover.
  • Four spiral construction — built for SAE 100R12 pressures and impulse cycles.
2

Which sizes are available?
Part Number Hose ID Thread Size Tube Size Hex Size Cross Reference Part Numbers
Parker 71
4GC11-12x12 3/4" 3/4" 1-1/16x12 1-1/8" 10571-12-12
4GC11-16x16 1" 1" 1-5/16x12 1-1/2" 10571-16-16
3

Which hose does this coupling terminate?
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully. The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
