4GC54-12x12 Couplamatic Grip Crimp 4GC Series Coupling - Code 61 Split Flange - 90° Bend Long Drop - 3/4" Hose ID - 3/4" Flange Size

4GC54-12x12 by Couplamatic | Grip Crimp 4GC Series Coupling | 3/4" Hose ID x 3/4" Split Flange Size | Code 61 | 90° Long Elbow | Trivalent Zinc Plating

Save $21.01 Save $21.01
$52.53
$52.53 - $52.53
$52.53
$31.52
$31.52 - $31.52
$31.52

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - Code 61 Split Flange - 90° Bend Long Drop
Specifications for Variant SKU: 4GC54-12x12 Couplamatic
Series: 4GC Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Code 61 Flange, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series
Description:
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

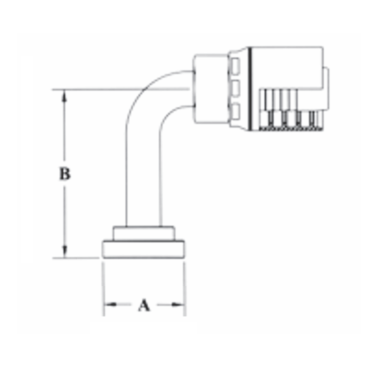

    Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches Cross Reference Part Numbers
    Parker 71
    4GC54-12x12 3/4" 3/4" 1.50" 3.75" 18971-12-12
    4GC54-16x16 1" 1" 1.75" 4.62" 18971-16-16

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
