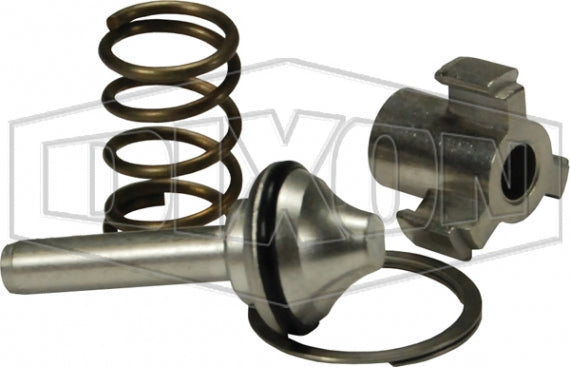

4H-SRKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | ISO-B Repair Kit | For 1/2" Body Size | Nitrile Seal | For 303 Stainless Steel Couplers

4H-SRKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | ISO-B Repair Kit | For 1/2" Body Size | Nitrile Seal | For 303 Stainless Steel Couplers

Save $1.34 Save $1.34
$12.02
$12.02 - $12.02
$12.02
$10.68
$10.68 - $10.68
$10.68

Dixon Valve & Coupling
Hydraulic Coupling: H-Series ISO-B Coupler Repair Kit
Specifications for Variant SKU: 4H-SRKIT Dixon
Series: H-Series
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Interchangeable to ISO7241 Series 'B'
  • Parker 60-Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Danfoss/Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX, ISO 7241-B
Additional Information:
Part Number Used On Coupler Style Fits Body Size Seal Material Repair Kit Contents
(for one coupler or plug)
2H-RKIT Steel 1/4" Nitrile Steel Valve Assembly & Retaining Ring
2H-BRKIT Brass 1/4" Nitrile Brass Valve Assembly & Retaining Ring
2H-SRKIT 303 Stainless 1/4" Nitrile 303 SS Valve Assembly & Retaining Ring
2H-SSRKIT 316 Stainless 1/4" Nitrile 316 SS Valve Assembly & Retaining Ring

3H-RKIT Steel 3/8" Nitrile Steel Valve Assembly & Retaining Ring
3H-BRKIT Brass 3/8" Nitrile Brass Valve Assembly & Retaining Ring
3H-SRKIT 303 Stainless 3/8" Nitrile 303 SS Valve Assembly & Retaining Ring
3H-SSRKIT 316 Stainless 3/8" Nitrile 316 SS Valve Assembly & Retaining Ring

4H-RKIT Steel 1/2" Nitrile Steel Valve Assembly & Retaining Ring
4H-BRKIT Brass 1/2" Nitrile Brass Valve Assembly & Retaining Ring
4H-SRKIT 303 Stainless 1/2" Nitrile 303 SS Valve Assembly & Retaining Ring
4H-SSRKIT 316 Stainless 1/2" Nitrile 316 SS Valve Assembly & Retaining Ring

6H-RKIT Steel 3/4" Nitrile Steel Valve Assembly & Retaining Ring
6H-BRKIT Brass 3/4" Nitrile Brass Valve Assembly & Retaining Ring
6H-SRKIT 303 Stainless 3/4" Nitrile 303 SS Valve Assembly & Retaining Ring
6H-SSRKIT 316 Stainless 3/4" Nitrile 316 SS Valve Assembly & Retaining Ring

8H-RKIT Steel 1" Nitrile Steel Valve Assembly & Retaining Ring
8H-BRKIT Brass 1" Nitrile Brass Valve Assembly & Retaining Ring
8H-SRKIT 303 Stainless 1" Nitrile 303 SS Valve Assembly & Retaining Ring
8H-SSRKIT 316 Stainless 1" Nitrile 316 SS Valve Assembly & Retaining Ring

10H-RKIT Steel 1-1/4" Nitrile Steel Valve Assembly & Retaining Ring
10H-BRKIT Brass 1-1/4" Nitrile Brass Valve Assembly & Retaining Ring
10H-SRKIT 303 Stainless 1-1/4" Nitrile 303 SS Valve Assembly & Retaining Ring
10H-SSRKIT 316 Stainless 1-1/4" Nitrile 316 SS Valve Assembly & Retaining Ring

12H-RKIT Steel 1-1/2" Nitrile Steel Valve Assembly & Retaining Ring
12H-BRKIT Brass 1-1/2" Nitrile Brass Valve Assembly & Retaining Ring
12H-SSRKIT 316 Stainless 1-1/2" Nitrile 316 SS Valve Assembly & Retaining Ring
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
