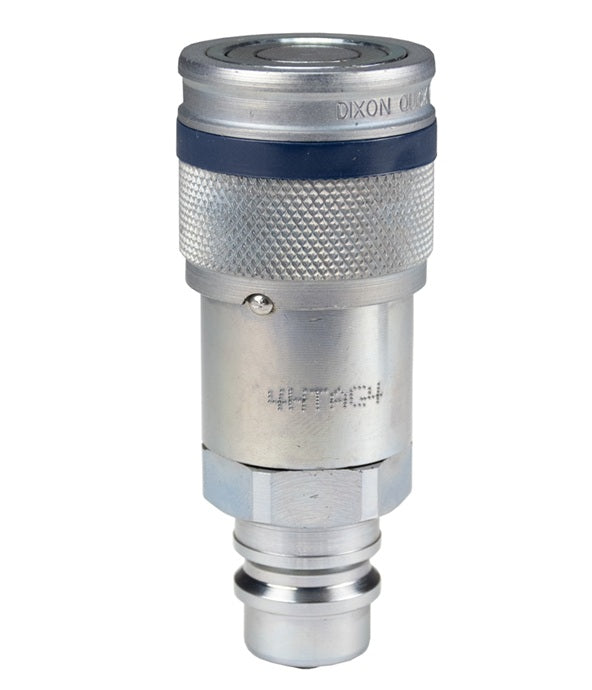

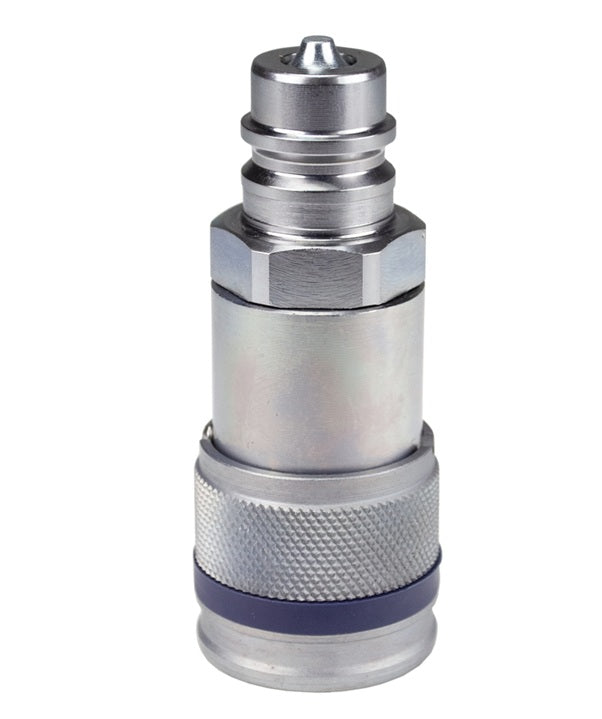

4HTAG4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | HT-AG-Series | Flushface ISO16028 Coupler x ISO7241-A AG Plug Adapter | 1/2" Body Size | Steel

Save $38.08

$95.20

$95.20 - $95.20

$95.20

$57.12

$57.12 - $57.12

$57.12

Dixon Valve & Coupling
Hydraulic Coupling: HT-AG-Series Flushface ISO16028 Coupler x ISO7241-A AG Plug Adapter

Easily interchange between old and new equipment by adapting poppet AG couplings with ISO Flat Face couplings.

Specifications for Variant SKU: 4HTAG4 Dixon
Series:	HT-AG-Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female ISO-16028 Flush Face QD Interchange, 1/2in Male ISO-7241 Wing Nut QD Interchange
Material(s):	Steel

Compatibility & Interchange:	Pioneer -Agricultural Interchange Parker/Pioneer 4000 Series Safeway S20 Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC.
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS-compliant trivalent chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life.
Seal Components:	HT-series couplers have polyurethane valve stem O-ring, with a temperature range of -65° to 212°F (-54°C to 100°C). Ancillary HT-series coupler seals are Nitrile with a temperature range of -40°F to 250°F (-40°C to 121°C). PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage. Nitrile seals are standard in AG-series coupler and plug. AG-series couplers have a PTFE anti-extrusion ring.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

HT-AG-Series \| Flushface ISO16028 Coupler x ISO7241-A AG Plug Adapter

Part Number	Body Size	Material	Length	Max. OD
4HTAG4	1/2"	Steel	3.89" (98.81mm)	1.57" (39.88mm)

HT-Series \| Correct Connect® Bands

Part Number Blue Part Number	Part Number Orange Part Number	Part Number Green Part Number	Part Number Yellow Part Number	Part Number Red Part Number	Description	Body Size
2HTBAND-B	2HTBAND-O	2HTBAND-G	2HTBAND-Y	2HTBAND-R	Coupler Band	1/4"
HT2BAND-B	HT2BAND-O	HT2BAND-G	HT2BAND-Y	HT2BAND-R	Plug Band	1/4"

3HTBAND-B	3HTBAND-O	3HTBAND-G	3HTBAND-Y	3HTBAND-R	Coupler Band	3/8"
HT3BAND-B	HT3BAND-O	HT3BAND-G	HT3BAND-Y	HT3BAND-R	Plug Band	3/8"

4HTBAND-B	4HTBAND-O	4HTBAND-G	4HTBAND-Y	4HTBAND-R	Coupler Band	1/2"
HT4BAND-B	HT4BAND-O	HT4BAND-G	HT4BAND-Y	HT4BAND-R	Plug Band	1/2"

5HTBAND-B	5HTBAND-O	5HTBAND-G	5HTBAND-Y	5HTBAND-R	Coupler Band	5/8"
HT5BAND-B	HT5BAND-O	HT5BAND-G	HT5BAND-Y	HT5BAND-R	Plug Band	5/8"

6HTBAND-B	6HTBAND-O	6HTBAND-G	6HTBAND-Y	6HTBAND-R	Coupler Band	3/4"
HT6BAND-B	HT6BAND-O	HT6BAND-G	HT6BAND-Y	HT6BAND-R	Plug Band	3/4"

8HTBAND-B	8HTBAND-O	8HTBAND-G	8HTBAND-Y	8HTBAND-R	Coupler Band	1"
HT8BAND-B	HT8BAND-O	HT8BAND-G	HT8BAND-Y	HT8BAND-R	Plug Band	1"
