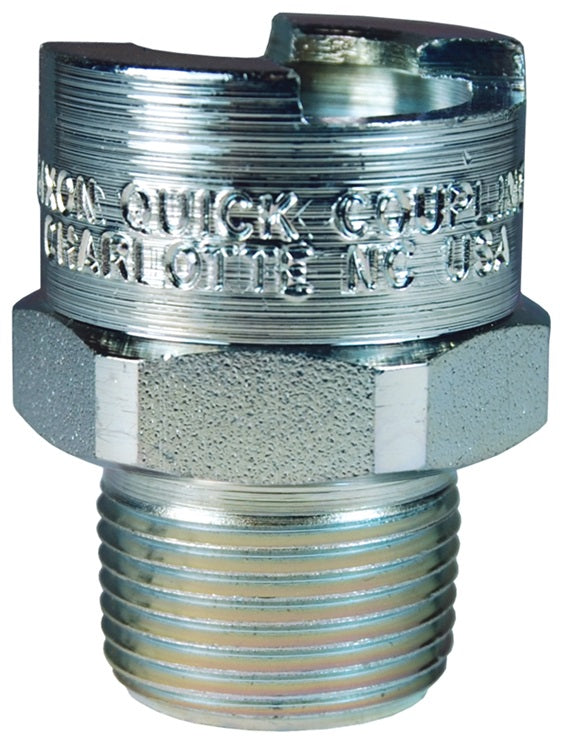

4NBM8 by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | 1" Male BSPT x 1/2" Body Size | Socket | Nitrile Seal | Steel

4NBM8 by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | 1" Male BSPT x 1/2" Body Size | Socket | Nitrile Seal | Steel

Save $2.43 Save $2.43
$21.89
$21.89 - $21.89
$21.89
$19.46
$19.46 - $19.46
$19.46

Dixon Valve & Coupling
Pneumatic Coupling: Dix-Lock N-Series Coupler (Male Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4NBM8 Dixon
Brand: Dix-Lock
Series: N-Series
Shape (Orientation): Straight
Ends Configuration: 1in Male BSPT, 1/2in Female MIL-C-3486 QD Interchange
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Bowes Interchange Bayonet Style
  • Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
Construction:
  • Machined components are manufactured using solid bar stock.
  • Nitrile (Nitrile Rubber) seals standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
Dix-Lock N-Series | Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Pressure Ratings for:
3NBM4 Socket/Female 3/8" 1/2" - 14 Male BSPT Steel 1.73"
(43.80mm)		 1.1"
(27.9mm)		 1" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 7,000 PSI (480 bar)
3NM4 Socket/Female 3/8" 1/2" - 14 Male NPTF Steel 1.80"
(45.70mm)		 1.1"
(27.9mm)		 1" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 7,000 PSI (480 bar)
4NBM3 Socket/Female 1/2" 3/8" - 19 Male BSPT Steel 1.66"
(42.20mm)		 1.5"
(38.1mm)		 1-3/8" -
4NBM4 Socket/Female 1/2" 1/2" - 14 Male BSPT Steel 1.75"
(44.5mm)		 1.5"
(38.1mm)		 1-3/8" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NBM4-B Socket/Female 1/2" 1/2" - 14 Male BSPT Brass 1.75"
(44.5mm)		 1.5"
(38.1mm)		 1-3/8" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NBM6 Socket/Female 1/2" 3/4" - 14 Male BSPT Steel 1.85"
(47mm)		 1.5"
(38.1mm)		 1-3/8" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NBM6-B Socket/Female 1/2" 3/4" - 14 Male BSPT Brass 1.85"
(47mm)		 1.5"
(38.1mm)		 1-3/8" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NBM8 Socket/Female 1/2" 1" - 11 Male BSPT Steel 1.95"
(49.5mm)		 1.5"
(38.1mm)		 1-1/2" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NBM8-B Socket/Female 1/2" 1" - 11 Male BSPT Brass 1.95"
(49.5mm)		 1.5"
(38.1mm)		 1-1/2" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NM3 Socket/Female 1/2" 3/8" - 18 Male NPTF Steel 1.66"
(42.2mm)		 1.5"
(38.1mm)		 1-3/8" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NM3-B Socket/Female 1/2" 3/8" - 18 Male NPTF Brass 1.66"
(42.2mm)		 1.5"
(38.1mm)		 1-3/8" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NM4 Socket/Female 1/2" 1/2" - 14 Male NPTF Steel 1.85"
(47mm)		 1.5"
(38.1mm)		 1-3/8" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NM4-B Socket/Female 1/2" 1/2" - 14 Male NPTF Brass 1.85"
(47mm)		 1.5"
(38.1mm)		 1-3/8" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NM6 Socket/Female 1/2" 3/4" - 14 Male NPTF Steel 1.85"
(47mm)		 1.5"
(38.1mm)		 1-3/8" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NM6-B Socket/Female 1/2" 3/4" - 14 Male NPTF Brass 1.85"
(47mm)		 1.5"
(38.1mm)		 1-3/8" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NM6-S Socket/Female 1/2" 3/4" - 14 Male NPTF 303 Stainless 1.85"
(47mm)		 1.5"
(38.1mm)		 1-3/8" 303 S.S. Coupler & 303 S.S. Plug:
Max. Working: 500 PSI (35 Bar)
Burst: 12,600 PSI (865 Bar)
4NM6-SS Socket/Female 1/2" 3/4" - 14 Male NPTF 316 Stainless 1.85"
(47mm)		 1.5"
(38.1mm)		 1-3/8" -
4NM8 Socket/Female 1/2" 1" - 11-1/2 Male NPTF Steel 1.95"
(49.5mm)		 1.5"
(38.1mm)		 1-1/2" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
4NM8-B Socket/Female 1/2" 1" - 11-1/2 Male NPTF Brass 1.95"
(49.5mm)		 1.5"
(38.1mm)		 1-1/2" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
4NM8-SS Socket/Female 1/2" 1" - 11-1/2 Male NPTF 316 Stainless 1.95"
(49.5mm)		 1.5"
(38.1mm)		 1-1/2" -
Dix-Lock N-Series | Plug (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Pressure Ratings for:
N3BM4 Plug/Male 3/8" 1/2" - 14 Male BSPT Steel 3.36"
(85.3mm)		 1.13"
(28.60mm)		 1" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 7,000 PSI (480 bar)
N3M4 Plug/Male 3/8" 1/2" - 14 Male NPTF Steel 3.36"
(85.3mm)		 1.13"
(28.60mm)		 1" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 7,000 PSI (480 bar)
N4BM3 Plug/Male 1/2" 3/8" - 19 Male BSPT Steel 3.46"
(87.9mm)		 1.31"
(33.30mm)		 1-3/16" -
N4BM4 Plug/Male 1/2" 1/2" - 14 Male BSPT Steel 3.65"
(92.7mm)		 1.31"
(33.3mm)		 1-3/16" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4BM4-B Plug/Male 1/2" 1/2" - 14 Male BSPT Brass 3.65"
(92.7mm)		 1.31"
(33.3mm)		 1-3/16" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4BM6 Plug/Male 1/2" 3/4" - 14 Male BSPT Steel 3.65"
(92.7mm)		 1.31"
(33.30mm)		 1-3/16" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4BM6-B Plug/Male 1/2" 3/4" - 14 Male BSPT Brass 3.64"
(92.7mm)		 1.31"
(33.30mm)		 1-3/16" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4BM8 Plug/Male 1/2" 1" - 11 Male BSPT Steel 3.89"
(98.8mm)		 1.51"
(38.40mm)		 1-3/8" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4BM8-B Plug/Male 1/2" 1" - 11 Male BSPT Brass 3.89"
(98.8mm)		 1.51"
(38.40mm)		 1-3/8" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4M3 Plug/Male 1/2" 3/8" - 18 Male NPTF Steel 3.46"
(87.9mm)		 1.31"
(33.30mm)		 1-3/16" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4M3-B Plug/Male 1/2" 3/8" - 18 Male NPTF Brass 3.46"
(87.9mm)		 1.31"
(33.30mm)		 1-3/16" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4M4 Plug/Male 1/2" 1/2" - 14 Male NPTF Steel 3.65"
(92.7mm)		 1.31"
(33.30mm)		 1-3/16" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4M4-B Plug/Male 1/2" 1/2" - 14 Male NPTF Brass 3.65"
(92.7mm)		 1.31"
(33.30mm)		 1-3/16" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4M6 Plug/Male 1/2" 3/4" - 14 Male NPTF Steel 3.65"
(92.7mm)		 1.31"
(33.30mm)		 1-3/16" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4M6-B Plug/Male 1/2" 3/4" - 14 Male NPTF Brass 3.65"
(92.7mm)		 1.31"
(33.30mm)		 1-3/16" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4M6-S Plug/Male 1/2" 3/4" - 14 Male NPTF 303 Stainless 3.65"
(92.7mm)		 1.31"
(33.30mm)		 1-3/16" 303 S.S. Coupler & 303 S.S. Plug:
Max. Working: 500 PSI (35 Bar)
Burst: 12,600 PSI (865 Bar)
N4M6-SS Plug/Male 1/2" 3/4" - 14 Male NPTF 316 Stainless 3.65"
(92.7mm)		 1.31"
(33.30mm)		 1-3/16" 303 S.S. Coupler & 303 S.S. Plug:
Max. Working: 500 PSI (35 Bar)
Burst: 12,600 PSI (865 Bar)
N4M8 Plug/Male 1/2" 1" - 11-1/2 Male NPTF Steel 3.89"
(98.8mm)		 1.51"
(38.40mm)		 1-3/8" Steel Coupler & Steel Plug:
Max. Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)
N4M8-B Plug/Male 1/2" 1" - 11-1/2 Male NPTF Brass 3.89"
(98.8mm)		 1.51"
(38.40mm)		 1-3/8" Brass Coupler & Brass Plug:
Max. Working: 300 PSI (20 Bar)
Burst: 8,200 PSI (865 Bar)
N4M8-SS Plug/Male 1/2" 1" - 11-1/2 Male NPTF 316 Stainless 3.89"
(98.8mm)		 1.51"
(38.40mm)		 1-3/8" 303 S.S. Coupler & 303 S.S. Plug:
Max. Working: 500 PSI (35 Bar)
Burst: 12,600 PSI (865 Bar)
