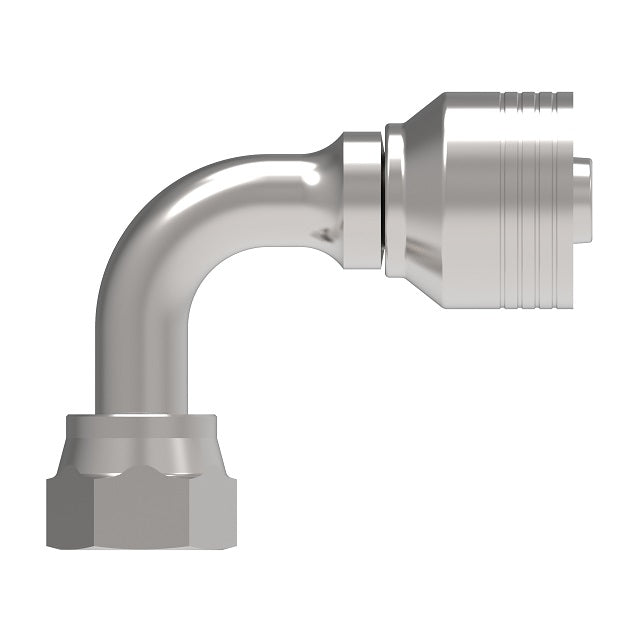

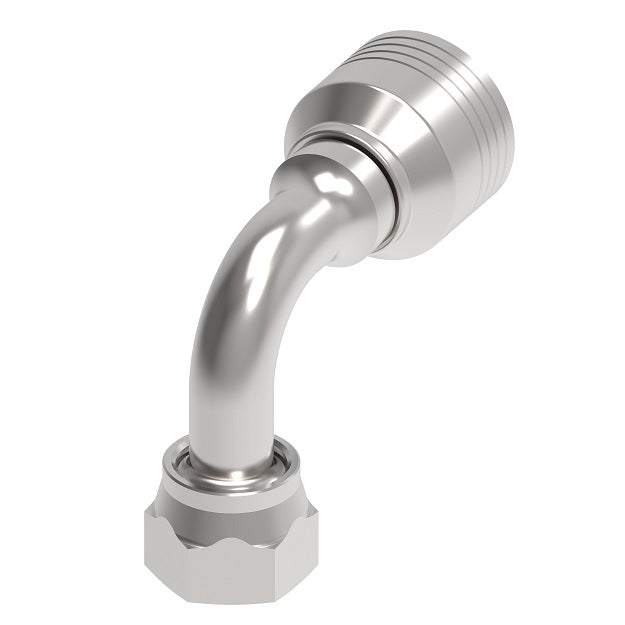

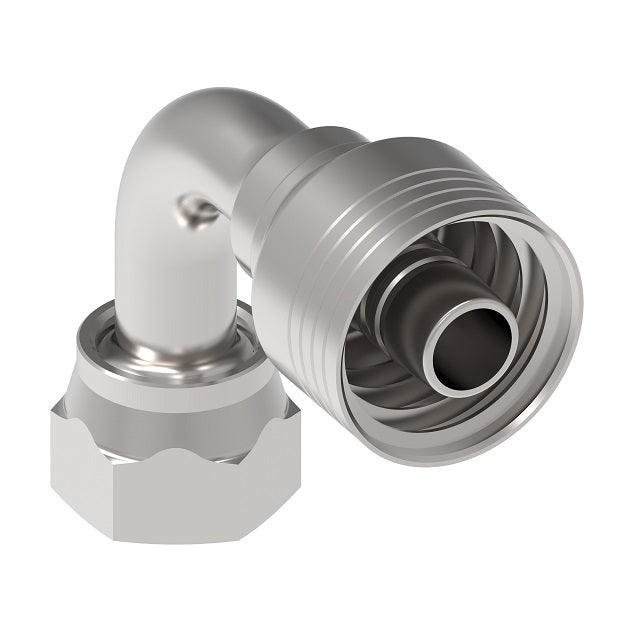

4S10FRB10.047 Aeroquip by Danfoss | 4 Wire Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

4S10FRB10.047 Aeroquip by Danfoss | 4 Wire Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

Name: 4S10FRB10.047 Aeroquip by Danfoss | 4 Wire Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S10FRB10.047 Danfoss
Price: 60.98 USD
Availability: InStock

$60.98 - $60.98

$60.98

$60.98 - $60.98

$60.98

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel (FRB) - 90° Swivel

Specifications for Variant SKU: 4S10FRB10.047 Danfoss
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series \| EC600 Series \| H430 Series \| H430R Series \| EC525 Series \| H471 Series \| H464 Series \| H485 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Dash Size	DN	Hose Dash Size	Thread	A	D	EØ	H	Hex 1
4S10FRB10	-10	16	-10	1-14	2.94"	1.91"	0.45"	1.27"	1-3/16"
4S10FRB10.047	-10	16	-10	1-14	2.94"	1.91"	0.45"	1.85"	1-3/16"
4S12FRB10	-12	16	-10	1-3/16-12	3.31"	2.29"	0.47"	1.88"	1.42"
4S12FRB12	-12	19	-12	1-3/16-12	-	-	-	-	-
4S20FRB20	-20	31	-20	1-11/16-12	-	-	-	-	-
