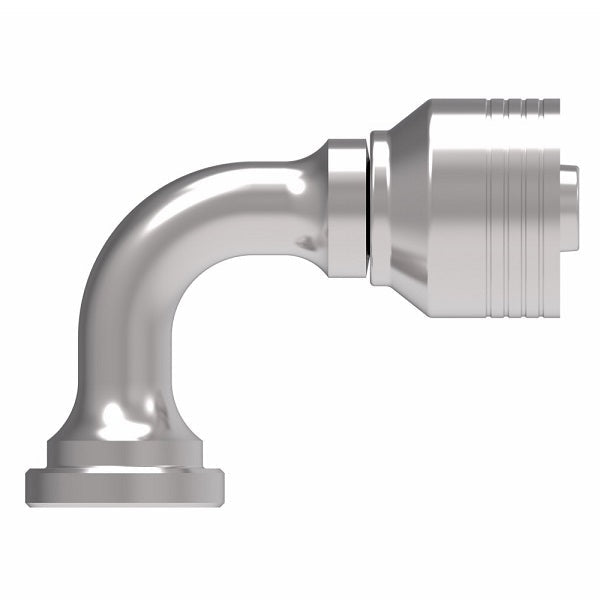

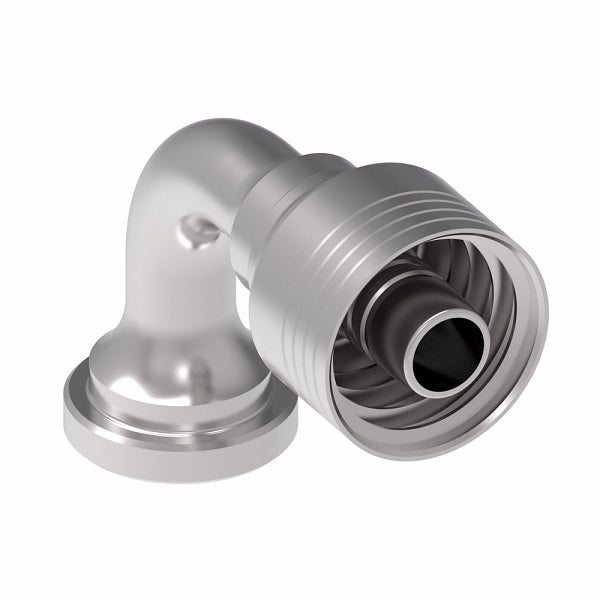

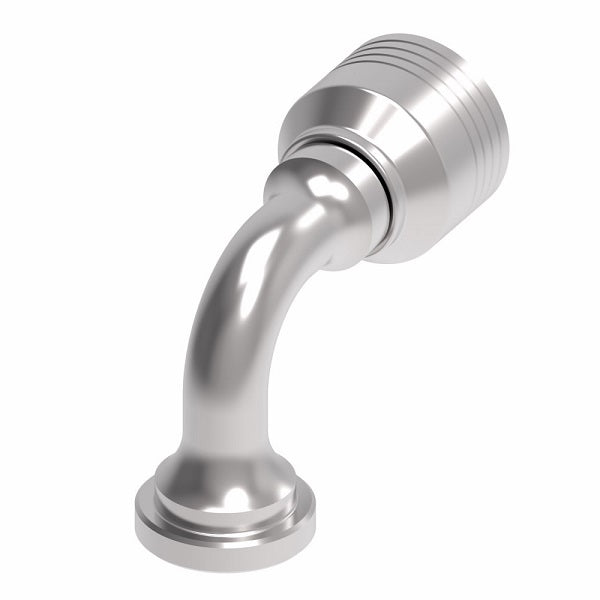

4S10KSB10 Aeroquip by Danfoss | 4 Wire 4S Komatsu Split Flange 90° Elbow (KSB) Crimp Fitting | -10 Komatsu Split Flange x -10 Hose Barb | Steel | Pack of 10

4S10KSB10 Aeroquip by Danfoss | 4 Wire 4S Komatsu Split Flange 90° Elbow (KSB) Crimp Fitting | -10 Komatsu Split Flange x -10 Hose Barb | Steel | Pack of 10

$1,501.46 - $1,501.46

$1,501.46

$1,501.46 - $1,501.46

$1,501.46

Aeroquip® by Danfoss
4 Wire 4S (TTC12) Komatsu Split Flange Crimp Fitting (KSB) - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4S10KSB10 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Komatsu Flange, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thd. Flange Head Diameter K&Oslash	Hose Size	A	D	E&Oslash	H
4S10KSB10	34.2mm	-10	3.07"	1.91"	0.45"	2.02"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
