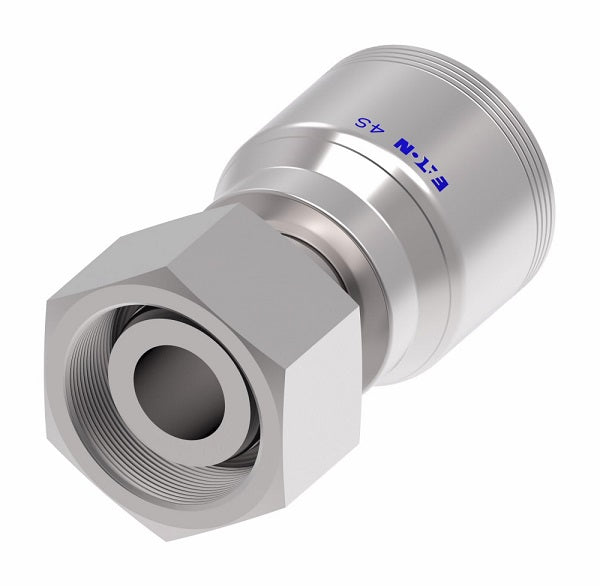

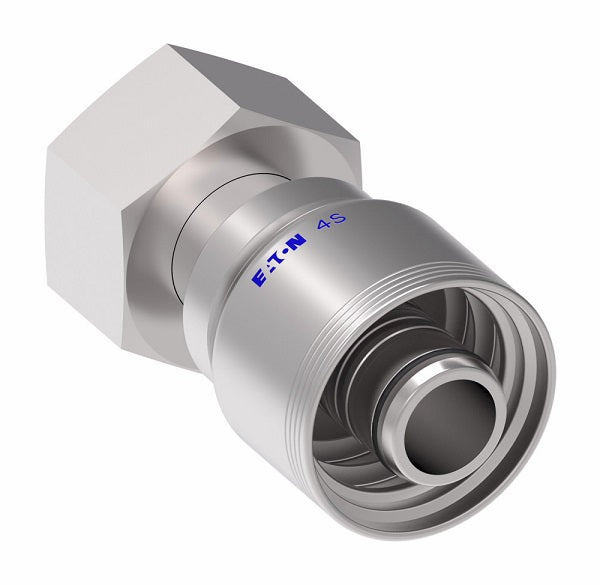

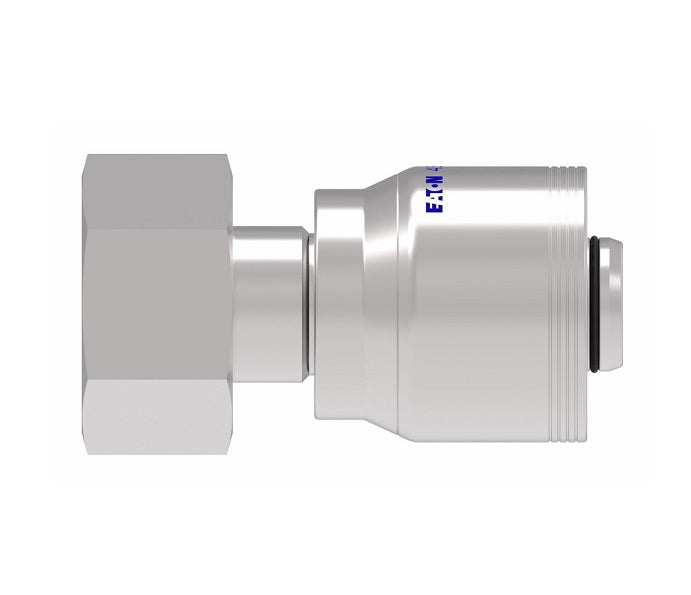

4S12DS8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S16 Female DKO/DIN x -08 Hose Barb | Steel | Pack of 10

4S12DS8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S16 Female DKO/DIN x -08 Hose Barb | Steel | Pack of 10

$397.29 - $397.29

$397.29

$397.29 - $397.29

$397.29

Aeroquip® by Danfoss
4 Wire 4S Male DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DS) - Straight

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4S12DS8 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	S16 Female DIN, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4S8DS6	12	-	-06	M20 x 1.5	2.12"	1.12"	0.26"	0.94"
4S10DS6	14	-	-06	M22 x 1.5	2.24"	1.24"	0.26"	1.06"
4S12DS8	16	-	-08	M24 x 1.5	2.46"	1.29"	0.38"	1.18"
4S16DS10	20	-	-10	M30 x 2	2.63"	1.48"	0.50"	1.42"
4S16DS12	20	19	-12	M30X2	2.90"	1.47"	0.56"	36mm
4S20DS12	25	19	-12	M36X2	3.41"	1.98"	0.56"	46mm
4S25DS12	30	19	-12	M42X2	3.47"	2.04"	0.56"	50mm
4S25DS16	30	25	-16	M42X2	3.59"	2.02"	0.76"	50mm
4S32DS16	38	25	-16	M52X2	3.72"	2.18"	0.76"	60mm
4S25DS20	30	31	-20	M42X2	3.80"	1.64"	0.87"	50mm
4S32DS20	38	31	-20	M52X2	4.39"	2.22"	0.99"	60mm
