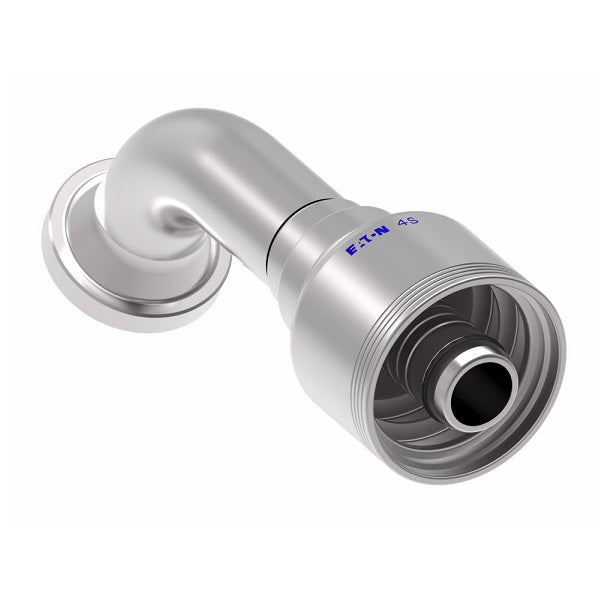

4S12FLG8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 60° Elbow (FLG) Crimp Fitting | -12 Code 61 Flange x -08 Hose Barb | Steel

4S12FLG8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 60° Elbow (FLG) Crimp Fitting | -12 Code 61 Flange x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,250.40 - $1,250.40

$1,250.40

$1,250.40 - $1,250.40

$1,250.40

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLG) - 60° Elbow

Specifications for Variant SKU: 4S12FLG8 Danfoss \| 10 \|
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	3/4in Code 61 Flange, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	EØ	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	EØ	H
4S8FLG8	-08	-	-08	1.19"	3.47"	2.40"	0.36"	1.13"
4S12FLG8	-12	-	-08	-	-	-	-	-
4S12FLG12	-12	19	-12	1.50"	5.27"	3.85"	0.56"	1.48"
4S16FLG12	-16	19	-12	1.75"	6.03"	4.61"	0.56"	1.76"
4S16FLG16	-16	25	-16	1.75"	6.16"	4.59"	0.76"	1.76"
4S20FLG16	-20	25	-16	2.00"	7.22"	5.65"	0.76"	2.20"
4S20FLG20	-20	25	-20	2.00"	7.86"	5.70"	0.99"	2.20"
4S24FLG20	-24	31	-20	2.38"	7.41"	5.24"	0.99"	2.04"
4S24FLG24	-24	38	-24	2.37"	9.97"	6.90"	1.22"	2.57"
4S32FLG32	-32	51	-32	2.81"	12.17"	9.10"	1.66"	3.38"
