4S12FRC10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

4S12FRC10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

Name: 4S12FRC10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S12FRC10 Danfoss
Price: 92.54 USD
Availability: InStock

$92.54 - $92.54

$92.54

$92.54 - $92.54

$92.54

Aeroquip® by Danfoss

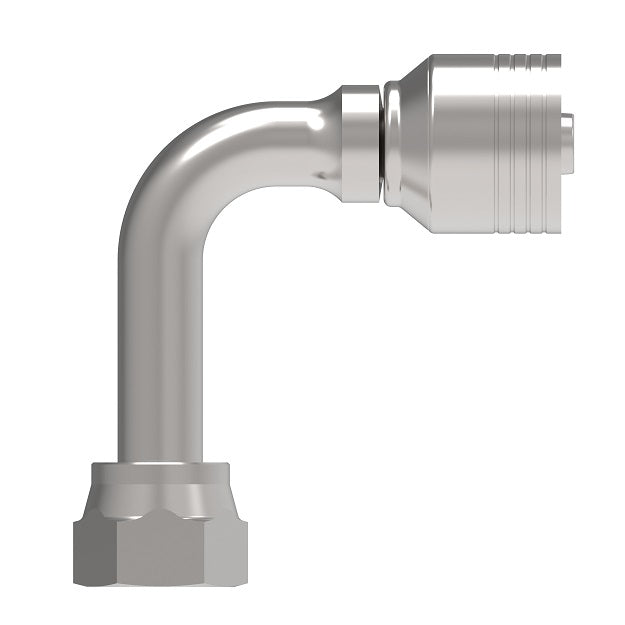

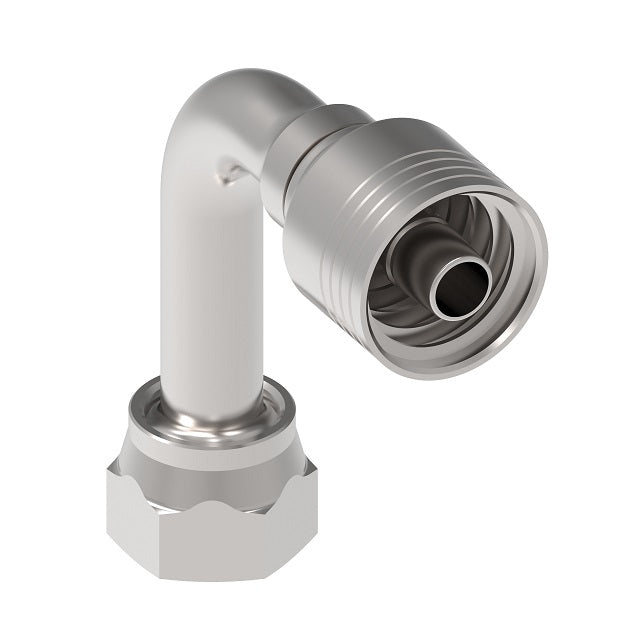

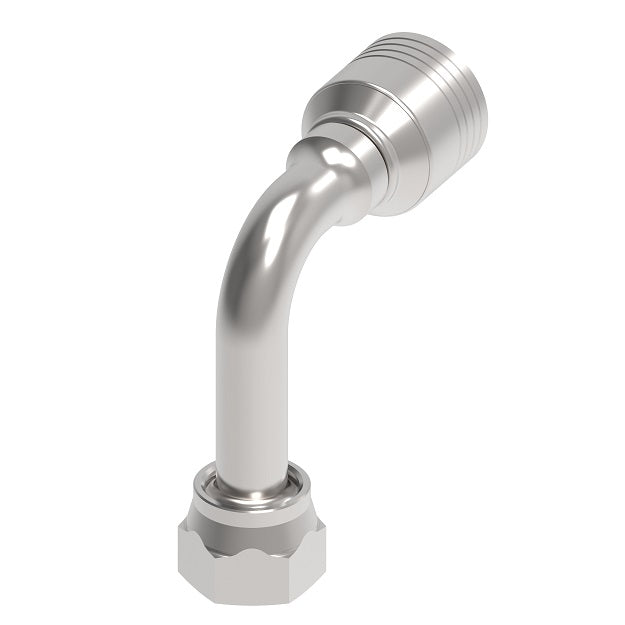

4 Wire 4S (TTC12) Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S12FRC10 Danfoss
Brand:	Aeroquip
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	Swivel, Long Drop
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series \| EC600 Series \| H430 Series \| H430R Series \| EC525 Series \| H471 Series \| H464 Series \| H485 Series

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	DN	Hose Dash Size	Thread
4S8FRC8	12	-08	13/16-16
4S12FRC10	16	-10	1-3/16-12
4S20FRC16	-	-16	-
