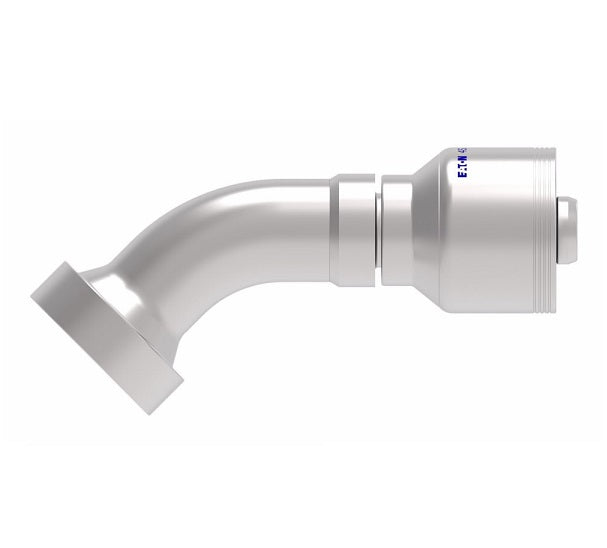

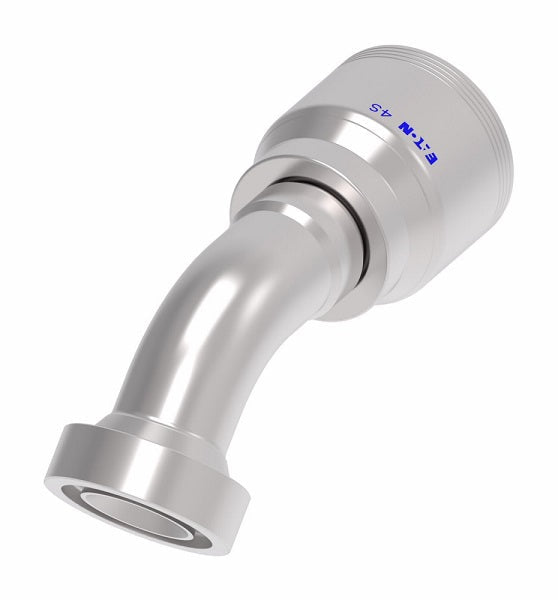

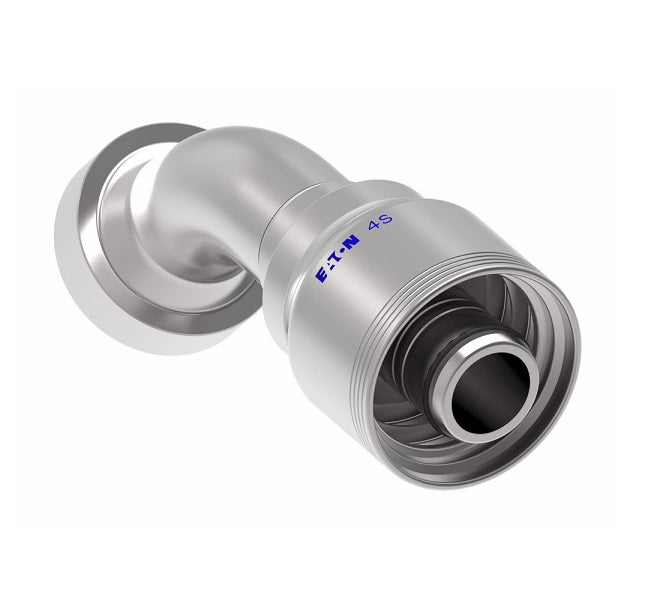

4S16CTA16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

4S16CTA16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

Name: 4S16CTA16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S16CTA16 Danfoss
Price: 134.77 USD
Availability: InStock

$134.77 - $134.77

$134.77

$134.77 - $134.77

$134.77

Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CTA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4S16CTA16 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
4S12CTA12	-12	19	-12	1.63"	4.63"	3.21"	0.56"	1.22"
4S16CTA12	-16	19	-12	1.87"	5.17"	3.74"	0.56"	1.39"
4S16CTA16	-16	25	-16	1.87"	5.29"	3.72"	0.76"	1.39"
4S20CTA16	-20	25	-16	2.13"	6.02"	4.46"	0.76"	1.65"
4S20CTA20	-20	31	-20	2.13"	6.67"	4.50"	0.99"	1.65"
4S24CTA24	-24	38	-24	2.50"	8.47"	5.40"	1.22"	1.82"
4S32CTA32	-32	51	-32	3.13"	10.04"	6.97"	1.66"	1.31"
